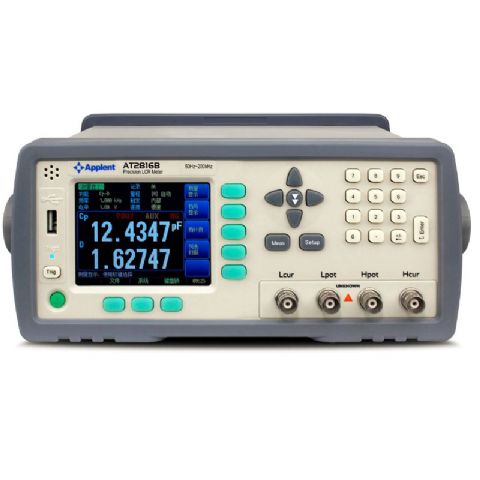

Digital LCR Meter 50Hz-200kHz With 0.1% Accuracy Capacitance Tester
Feature:
- TFT-LCD Display
- Correction: OPEN SHORT LOAD
- Comparator Function: 10 files,14 bins: P1~P9,NG,AUX, HI, IN, LO
- Interface: RS232C and Handler- Optional Interface: USB
- Test signal monitor: Vm and Im
- Avarage rate: 1~200times
- Measurement Terminal: 5 terminals
- Key lock function
Specifications:
| Parameters |
Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,G-B,R-X,Z-rad,Z-deg |
| Monitor Parameters |
Z, D, Q, r, d, R, X, G, B, Y, Vac, Iac, , % |
| Accuracy |
0.1% |
| Frequency |
50Hz-200kHz |
| Display Range |
L: 0.00001H - 999999H C: 0.00001pF - 999999F R,Z: 0.00001 - 99.9999M Q: 0.00001 - 999999 (deg): -90.0000- 90.0000 (rad): -3.14159 3.14159 %: -999.999% - 999.999% D: 0.00001 -9.99999 |
| Source Resistance |
30 50 100 |
| Range |
9 ranges, Automatic, Manual, Nominal |
| Display Max |
6 dgt, principle parameter: 999999; sub parameter: 999999; monitor parameter: 999999 |
| Signal Level |
0.01V - 2.00V (10mV Step) |
| Speed |
30 t/s, 10 t/s, 6 t/s, 3 t/s 1 - 256 times average is available |
| Comparator |
14-bin sorting, 10-bin GD, 1-bin NG, 1-bin AUX, 2-bin principle parameter NG Count function: Max - 999999 |
| List Test |
10 groups frequency and level scanning test |
| Adjustment |
Open/Short frequency reset, 3 point frequency and load correction |
| Files |
10 group files to save users setting, 1 group to save system data real-time |
| Interface |
RS232C, ExHandler Interface, with standard USB disc interface (article 10000 data) |
| Other |
LCR automatic selection, keypad lock, SCPI instruction set, true-color TFT-LCD display |
| Power Supply |
Voltage: 90V AC - 250V AC Frequency: 50Hz - 60Hz Power: Max 20VA |
| Dimension Weight |
264mm(Width)x107mm(Height)x350 mm(Depth); 4kg |
| Accessories |
ATL501: Test cable ATL607: Test fixture ATL600: Short-circuit slice ATL801: 232 Communication cable |
| Optional Accessories |
ATL608 SMD patch clamp ATL508: SMD patch test clip ATS2816B: Data acquisition software ATL508A: SMD patch test clip |
Whats in the package
ATL501: Test cable
ATL607: Test fixture
ATL600: Short-circuit slice
ATL801:
232 Communication cable
