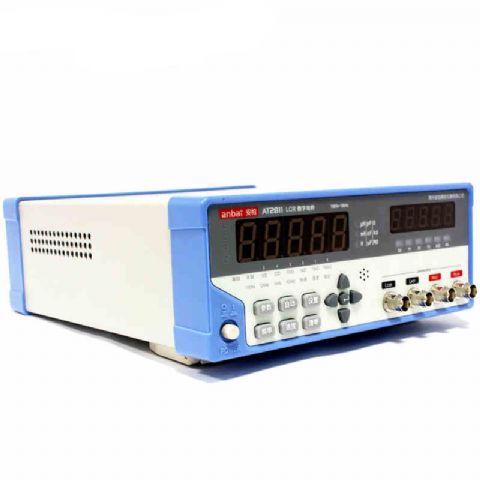

Digital LCR Meter Parameters:L C R Z

Feature:

• Principle parameter 0.8 inches LED display, sub parameter 0.5 inches LED display.
• Display A L, C, R, Z
• Display B Q, D
• Comparator(sorting) function: 5-bin sorting
• Beep: can turn on/off beep for all comparator results.

Specification
*Parameters:L,C,R,|Z|
*Monitor Parameters:D,Q
*Accuracy:0.25%
*Frequency:100Hz，120Hz，1kHz，10kHz
*Display Range:L: 0.01μH(10kHz)-9999H C: 0.01pF(10kHz) - 9999μF R,Z: 0.0001Ω - 99.99MΩ Q: 0.0001 - 9999 Δ%:-9999% - 9999% D:0.0001 ～ 9.9999
*Source Resistance:30Ω , 100Ω
*Range:Automatic and manual with 6 ranges
*Display Max:Principle parameter: 99999 Sub parameter: 99999
*Signal Level:0.1Vrms, 0.3Vrms and 1Vrms (1±10%)
*Speed:Slow: 3 times/second, Fast: 10 times/second
*Comparator:5-bin sorting
*Adjustment:Short and open sweep frequency zero clearing
*Interface:None
LED display LCR automatic parameter select
198V ~ 252VAC 48.5Hz ~ 52.5Hz
220mm*85mm*259mm
