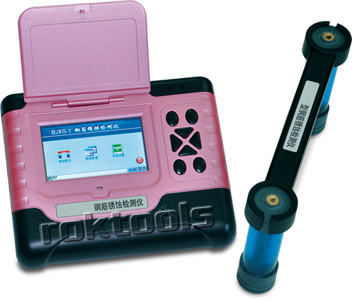

Rebar corrosion detector uses advanced hlf-cell potential method to non-destructively scan and detect corrosion within reinforced concrete structures. Features large internal memory with data output function for detail analysis.Evaluate rebar corrosion condition in the concrete structure by adopting half-cell potential method.

*Professional design
   Permanent reference electrode
  Two testing modes: potential method and gradient method
 Visual display: data series, data icon and data chromatogram
  Automatically detect ambient temperature and record test time.
*Real-time data analysis
* Real-time data management
* Professional Windows data processing software
*Human-computer interaction
  Friendly human-computer interactive interface
  Various built-in various helpful files and demo videos facilitate the users to conduct skilled instrument operation.
Mass storage

    4GB large-capacity SD card can store more than 100,000 data;
Main technical specifications
Hardware Platform     ARM9 embedded Hardware Platform, WinCe5.0 Operating System, True Color TFT Screen, Touch Screen
Measuring Range       ≤±2500mV
Display Resolution     0.6mV
Accuracy                        ≤1mV
Power Supply              Rechargeable Lithium Battery
Working Time ≥           28 Hours
Working Temperature -10℃～＋50℃
Working Humidity        ≤90%RH
