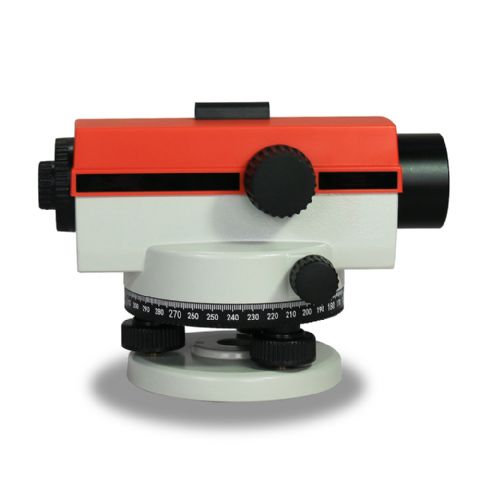

Auto Level IP 54 surveying Dumpy Level Builder’s Level
Specification:
| Model |
AULE-98002-20 |
AULE-98002-24 |
AULE-98002-28 |
AULE-98002-32 |
AULE-98002-36 |
| Telescope Magnification |
20X |
24X |
28X |
32X |
36X |
| Standard deviation for 1km double-run leveling |
2.5mm |
2.0mm |
1.5mm |
1.0mm |
1.0mm |
| Setting accuracy |
±0.5″ |
±0.5″ |
±0.4″ |
±0.3″ |
±0.3″ |
Compensator working range: ±15′
Telescope image: Erect
Clear objective aperture: 40mm
Angle of field of view: 1°20′ 1°17.5′(AULE-98002-36)
Shortest focusing distance: 0.5m
Stadia Multiplication constant/Addition constant: 100/0
Circular level sensitivity: 8′/2mm
Horizontal circle: 360° or 400gon
Dust/waterproof: IP54
compensator type: X type hanging wire and air damping or magnetic damping
Instrument size: 195mm×135mm×140mm
Net weight: 1.4Kg
Centre size of tripod: M16 or 5/8”
