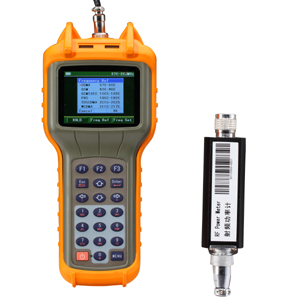

RF Power Meter (2~3000MHz)
Zoom Browse
Product Name: RF Power Meter (2~3000MHz)
Product Numbers: RFPO-3000
Product Specifications: Frequency range :2~3000MHz
Product Unit: single channel
Product Remark: China RF Power Meter
Product Class:Measuring and Testing Instruments > Communication Instruments > RF Power Meter
Product Details
【DateTime:2014-11-01 Browse:】【Font: Big Mid Small】【Print】【Close】

RF Power Meter (2~3000MHz)


Main technical specification

Absorb mode parameter
Input channel
single channel
Dynamic range
>40dB
Measure mode
Manual, Auto(Recommend)
Frequency range
2-2000MHz, 2-3000MHz
Amplitude range
40dBm,+5dBm
 -10dBm,+35dBm  (30dB)
 0dBm,+45dBm     (40dB)
Resolution
0.01dB
Measure precision
+-0.3dB
Input signal
GSM, CDMA, PHS and so on
Input impedance
50Ohm


Through mode parameter
Frequency range
2~3000MHz
Amplitude range
+13dBm--+53dBm
50Ohm standing -wave ratio in reference
<1.1
Insert wastage
<0.4dB
Input impedance
50Ohm
Probe wave
<1.2


Others
Display screen
TFT LCD(320*240)
Battery
7.2V lithium battery
Work time
average>24 hours ,series>12 hours
Power adapter
100-240V/0.8A 50-60Hz
Charge time
about 5 hours
Volume
240 (L)100*(W)50*(H)mm
Weight
 0.7 kilograms
Storage temperature
-10--+40oC
Storage environment
put in dry condition

accessories
