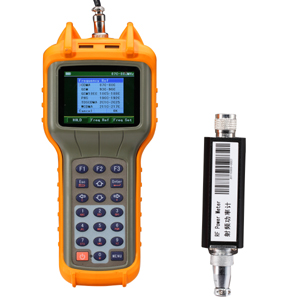

RF Power Meter for GSM, CDMA, PHS
The product is a High-frequency power meter having good performance and carried conveniently, especially designed for measuring complex waveform. The application of measuring Digital-communication signal such as GSM, CDMA, PHS, resolves effectively the problem of measuring complex waveform`s power and amplitude,which makes the meter`s reliability higher. The human design style used on operating methods and display accords with the operator`s habit. The product`s low price makes the connection with dear equipments little stronger, and is fit for measure and maintenance in wireless communication.
Main technical specification
|
Absorb mode parameter
|
|
Input channel
|
single channel
|
|
Dynamic range
|
>40dB
|
|
Measure mode
|
Manual, Auto(Recommend)
|
|
Frequency range
|
2-2000MHz, 2-3000MHz
|
|
Amplitude range
|
40dBm,+5dBm
-10dBm,+35dBm (30dB)
0dBm,+45dBm (40dB)
|
|
Resolution
|
0.01dB
|
|
Measure precision
|
+-0.3dB
|
|
Input signal
|
GSM, CDMA, PHS and so on
|
|
Input impedance
|
50Ohm
|
|
Through mode parameter
|
|
Frequency range
|
800-2500MHz
|
|
Amplitude range
|
+13dBm--+53dBm
|
|
50Ohm standing -wave ratio in reference
|
<1.1
|
|
Insert wastage
|
<0.4dB
|
|
Input impedance
|
50Ohm
|
|
Probe wave
|
<1.2
|
