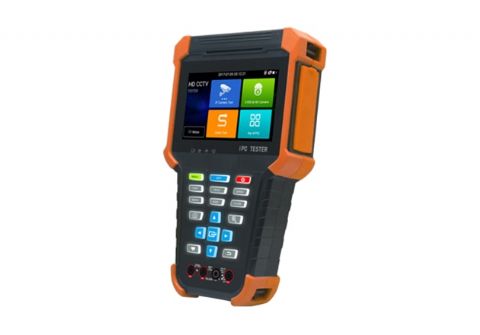

CCTV-1514-A : HD IP+Analog+HDMI+AHD+CVI+TVI

CCTV-1514-B: HD IP+Analog+CVI+AHD+TVI+HDMI+SDI

- 4 inch IPS touch screen, 800*480 resolutions

- 8MP CVI/ TVI/ AHD, 8MP EX-SDI, HD-SDI, 3G-SDI*

- H.265/H.264, 4K video display via mainstream

- Chrome browser, test and set Axis camera

- HDMI Input, support 1080P

- DC12V 3A, DC 48V PoE power output

- RJ45 cable TDR test, cable quality test

- Rapid ONVIF& HD cameras Lens simulation and focus function

- Interface waterproof and dustproof

- Backlight buttons, easier to operate in the dark

- Tester Play : Tester, mobile phone, PC display at the same time

Camera test:

- 4 inch IPS touch screen, 800*480 resolutions

- H.265 & H .264 IP, 4K video display via mainstream

- 8MP TVI test,3840 x 2160P 12.5/15 FPS,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu *

- 8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *

- 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *

- 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record& playback, coaxial PTZ & call OSD menu *

- HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *

- 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *

- Rapid ONVIF, Auto log in and display image, create testing report

- Len simulation: simulate different  lenses display area，supported lens:“2.8/3.6/4/6/8/12/16/25mm”is for to choose camera lens.

- AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

- IP and analog display image at the same time

- IPC TEST (Non-ONVIF test) ,HIK test tool (Hikvision camera),DH test tool (Dahua camera)

- CVBS camera test, PTZ controller

- DC12V/3A power output,camera can be powered from DC 12Votage .

- Rapid video, just by one key to detect all network cameras and auto display

- Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

- CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable

- Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

Cable test:

- Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

- RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

- Cable tracer, search BNC cable, network cable and telephone cable from the mess cables *

Other Functions:

- Network tool: Ping, IP scan, Port Flash ,DHCP server, Trace Route

- POE & power information, DC12V& PoE power and voltage output /input measurement

- Tester Play: Tester, android version mobile phone and PC display at the same time

- Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc

- HDMI signal input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display image ,record and snapshot *

- Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters

- Customers self update software, you can install apps with android version

- Media player, 4K video files and MKV/MP4 media files play

- Quick office, quick office app (support excel ,word ,ppt format ) doc. editable

- 8GB SD card including

- Display its genuine resolution of the IP camera images

- Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

- 7.4 V /4000mAh Lithium Ion Polymer Battery, after 3~4 hours charging , working time lasts 9 hours
