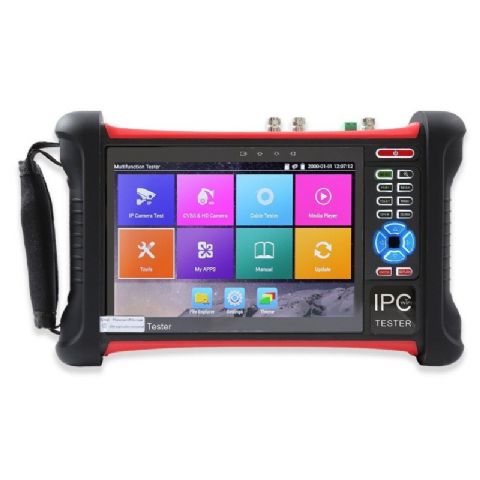

IP Analog Camera Tester 8MP TVI HDMI Input RJ45 cable TDR Test

CCTV-1517-A(Basic version)： support IP+analog camera test+Video level meter+Cable tracer+UTP cable test+RJ45 cable TDR test+HDMI in/out
CCTV-1517-B-ADH ：support IP+analog camera test+AHD+CVI+TVI+Video level meter+Cable tracer+UTP cable test+RJ45 cable TDR test+HDMI in/out
CCTV-1517-C-ADHS： support IP+analog camera test+AHD+CVI+TVI+SDI+Video level meter+Cable tracer+UTP cable test+RJ45 cable TDR test+HDMI in/out

CCTV-1517-D-MOVTADHS： support IP+analog camera test+AHD+CVI+TVI+SDI+Digital Multimeter+Optical power meter+visual fault locater+TDR cable test+Video level meter+Cable tracer+UTP cable test+RJ45 cable TDR test+HDMI in/out

Model: CCTV-1517-C-ADHS

- 8MP TVI, 8MP CVI, 8MP AHD, 8MP EX-SDI, HD-SDI, 3G-SDI test

- H.265/H.264, 4K video display via mainstream

- Chrome browser, set Axis etc cameras parameters

- Built in WIFI, create WIFI hotspot

- HDMI input & 4K output

- DC12V 3A, DC48V PoE power output

- RJ45 cable TDR test,cable quality test

- Cable tracer and video leverl meter

Features

Camera test:

- 7 inch retina touch screen, 1920*1200 resolutions

- H.265 & H .264 IP, 4K video display via mainstream

- 8MP TVI test,3840 x 2160P 15 fps,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu

- 8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

- 8MP CVI test, 3840 x 2160P 12.5/15fps, 4xzoom, video record& playback, coaxial PTZ & call OSD menu

- 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record& playback, coaxial PTZ & call OSD menu

- HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu

- 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu

- Rapid ONVIF, Auto log in and display image, create testing report

Other functions:

- Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

- POE & power information, DC12V& PoE power and voltage output /input measurement

- Tester Play: Tester, android version mobile phone and PC display at the same time

- Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc

- HDMI input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display,record and snapshot

- Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

- Self -update software, you can install apps with android version

- Media player, 4K video files and MKV/MP4 media files play

- Quick office, quick office app (support excel, word, ppt format) doc. editable

- 8GB SD card including

- Display its genuine resolution of the IP camera images

- Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

- 7.4 V /5000mAh Lithium Ion Polymer Battery, after 6~7 hours charging , working time lasts 10 hours
