CCTV-1519-A: IP+CVBS+AHD+CVI+TVI   5 In 1 CCTV Tester

CCTV-1519-B: IP+CVBS+AHD+CVI+SDI+TVI 6 In 1 CCTV Tester

CCTV-1519-C: IP+CVBS+AHD+CVI+SDI+TVI  Multimeter+optical fiber+visual fault locator+TDR full functional Model

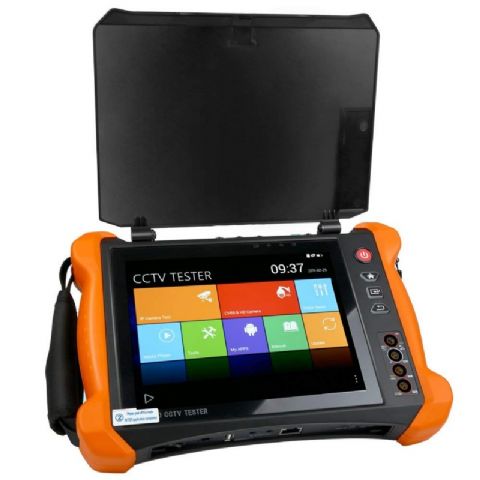

8 inch 2K Retina Display with Anti-Sunlight Cover HD CCTV Tester

Supports English, Chinese, Korean,  Russian, Italian, French, Polish, Spanish, Japanese, German etc

CCTV-1519 series

- HD output support 4K

- DC12V 3A, DC 48V PoE power output

- Rapid ONVIF, auto view video and create test report

- RJ45 cable TDR test ,UTP cable quality test

- Backlight buttons, easier to operate in the dark

- 4 channels ONVIF video simultaneous display

- 8 inch retina touch screen, 2048*1536 resolution

- 8MP TVI, 8MP CVI, 8MP AHD & SDI/EX-SDI test

- H.265/H.264, 4K video display via mainstream

- Chrome browser, test and set Axis camera

- Anti-sunlight and screen protecting cover

- HD input support 1080P

Camera test:

-  8 inch retina touch screen, 2048*1536 resolutions

-  H.265 & H .264 IP, 4K video display via mainstream

-  8MP TVI test,3840 x 2160P 15 fps,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu *

-  8MP AHD test,3840 x 2160P 15 fps

2560x1944P12.5F/ 20fps, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *

-  8MP CVI test, 3840 x 2160P 12.5/15fps, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *

-  HD SDI/EX-SDI camera test, support 1080P 50/60 FPS *

-  4 channel ONVIF video simultaneous display,4 channel display max support 1080P ,single channel display max support 4K

-  Rapid ONVIF, Auto log in and display image, create testing report

-  Chrome browser, test and set Axis camera

-  AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

-  CVBS camera test and PTZ control

-  IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)

-  Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement

-  DC12V/3A power output, camera can be powered from DC 12Votage

-  48V PoE power output power

-  Rapid video, just by one key to detect all network cameras and auto display

-  Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

-  CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable

-  Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

Cable test:

-  Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

-  RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

-  Cable tracer, search BNC cable, network cable and telephone cable from the mess cables *

Other functions:

-  Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

-  POE & power information, DC12V& PoE power and voltage output /input measurement

-  Tester Play: Tester, android version mobile phone and PC display at the same time

-  Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc

-  HD input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display,record and snapshot *

-  Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

-  Self -update software, you can install apps with android version

-  Media player, 4K video files and MKV/MP4 media files play

-  Quick office, quick office app (support excel, word, ppt format) doc. editable

-  8GB SD card including

-  Display its genuine resolution of the IP camera images

-  Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

-  7.4 V /7000mAh Lithium Ion Polymer Battery, after 6~7 hours charging , working time lasts 16 hours
