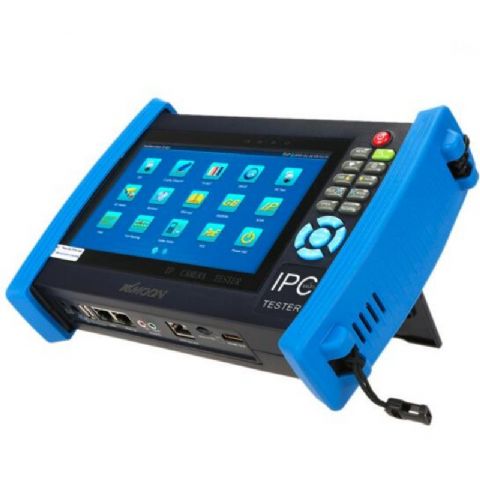

CVBS Camera Video Level Meter CCTV Tester Cable Tracer Network Tool

“*”Sign means the function optional

Notice: CCTV-1516- series have optional functions (TDR, Multimeter, AHD,

                                    CVI ,SDIand TVI),

Each color represent different functions, choose it carefully please.



CCTV-1516-A Basic (testing for IPC, CVBS, HDMI input)



CCTV-1516-B ADH(testing for IPC, CVBS, AHD, TVI, CVI)



CCTV-1516-C ADHS(testinf for IPC, CVBS, AHD, CVI, TVI, SDI)



CCTV-1516-D     with all functions



Camera test:

- 7 inch retina touch screen, 1920*1200 resolutions

- H.265 & H .264 IP, 4K video display via mainstream

- 8MP TVI test,3840 x 2160P 15 fps,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu *

- 5MP AHD test, 2560x1944P12.5F/ 20fps, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *

- 8MP CVI test, 3840 x 2160P 12.5/15fps, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *

- HD SDI/EX-SDI camera test, support 1080P 50/60 FPS *

- Rapid ONVIF, Auto log in and display image, create testing report

- AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

- CVBS camera test and PTZ control

- IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera),DH test tool (Dahua camera)

- Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement

- DC12V/2A power output, camera can be powered from DC 12Votage

- 48V PoE power output power

- Rapid video, just by one key to detect all network cameras and auto display

- Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

- CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable

- Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

Cable test:

- Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

- RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

- Cable tracer, search BNC cable, network cable and telephone cable from the mess cables

- TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement

   range 1.2KM*





Other functions:

- Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

- POE & power information, DC12V& PoE power and voltage output /input measurement

- Tester Play: Tester, android version mobile phone and PC display at the same time

- Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc

- HDM input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display, record and

  snapshot *

- Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

- Self -update software, you can install apps with android version

- Media player, 4K video files and MKV/MP4 media files play

- Quick office, quick office app (support excel, word, ppt format) doc. editable

- 8GB SD card including

- Display its genuine resolution of the IP camera images

- Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

- 7.4 V /7000mAh Lithium Ion Polymer Battery, after 7~8 hours charging , working time lasts 16 hours



LCD	Item   series	Plus series
	Display	New 7 inch IPS touch screen,1920*1200 resolution
Video Mode	CVBS	1 channel BNC input & 1 channel BNC looped output,NTSC/PAL (Auto adapt)
		Analog video level meter, peak video signal level,SYNC signal level, Color bar chroma level measurement*
		PTZ control,RS485 control, Baud 600-115200bps,compatible   with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
		CVBS loop test	the tester send and receive color bar generator signal ,check BNC cable
	IP camera test 4k/H.265/H.264	IP Discovery/Quick ONVIF/IPC test /RTSP play/Client APK
		Rapid Video	Auto view the video, create testing report
		Hik test tool	activate hikvision camera, modify the user name, password and IP parameters
		Dahua test tool	Dahua camera test, modify the user name, password and IP parameters
	IP& CVBS test	IP& CVBS test at the same time ,converter test from analog to digital with dual test window
	Coaxial HD test*	8MP TVI camera test,3840 x 2160P 15 FPS, UTC control/ call OSD menu *
		8MP CVI camera test,3840 x 2160P 12.5/15 FPS,UTC control call OSD menu *
		5MP AHD test,2560x1944P 12.5F/20F, UTC control d call OSD menu *
		HD SDI/EX-SDI camera test ,support 1080P 50/60 FPS *
	HDMI input   *	1 channel HDMI input, support 1080P *
	Zoom Image	4x zoom, to enlarge image, Screen snapshot,record ,save ,view   and record and play back
Analog Video out	Color bar generator	Output one channel PAL/NTSC color bar video signal for testing monitor or video cable
Power output	PoE power output	48V PoE power output, max power 24W
	DC12V power	DC12V /2A power output
Cable test	TDR cable test *	BNC cable, network cable, telephone   cable, RVV cable and elevator cable,cat 5/6 cable’s length and short circuit. measurement range 1.2KM *
	Cable tracer *	search BNC cable, network cable and telephone cable from the mess cables *
	UTP cable test	Test UTP cable connection status and display on the screen. Read the number on the screen
	RJ45 cable TDR test	Test cable pair status, length,attenuation, reflectivity,   impedance, skew etc.measurement range 180M.
TesterPlay	screen projection：tester, mobile phone and PC display at the same time (For android version mobile phone)
Network   test	Trace route, Link monitor,DHCP server, port flashing,Ping test
Wi-Fi	Built in WIFI,speeds150M,display   wireless camera image
Audio   test	1 channel audio signal input, test whether sound normal,1 channel audio signal,to connect   headphone
Data   monitor	Captures and analyzes the command data from controlling device,also can send hexadecimal
PoE   test	Measurement POE switch or PSE power supply voltage and cable connection status
Drop-down   menu	You can select PoE power switch ,IP setting,CVBS, LAN info, HDMI IN functions etc in any interface
