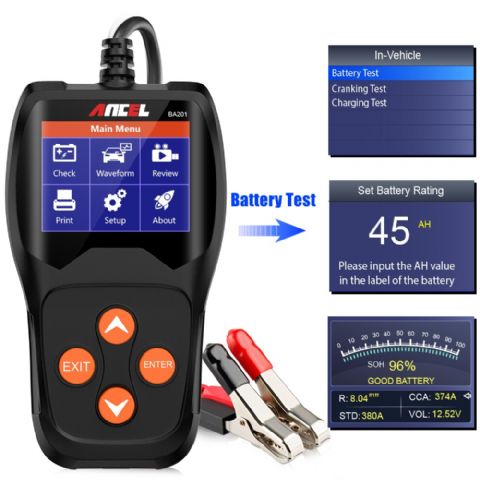

Battery Charging Tester Car Automobile Battery Healthy Analyzer

Why choose it?

1.Identify battery status Good or Replace

2.Check Battery Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.

3.Check Internal resistance value (Ohm)

4.Display battery life in percentage (%)

5. Battery Cranking Test, load test

6. Battery Charging Test, Ripple Test

7.Graphing voltage real time monitoring & review

8.All test results storage and review

9.Print/upload all test results and battery report on PC for deep analysis. 10.Life time update online Free

Car Circuit Tester Function:

1. Fast and smooth running speed with STM-32 chip set hardware

2. Accurate test results, using high precision amplifier and calibrated by professional battery testing tool, KW600 reading accuracy up to 99%.

3. Wide testing range cover from CCA 100- 2000 , 30- 220 AH, best in the market.

4.Industry initiative graphical Battery Voltage real time monitoring, can be uploaded to PC for analysis.

5. Unique battery results display in percentage and meter mode.

6.Test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc.

7. Polarity reverse connection protection, reverse connection will not damage the tester or affect the vehicle and battery.

8. Directly test the battery with loss of electricity, no need to full charge before testing.

9. Testing standards include currently the worlds majority of battery standards, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB. 10. Data Storage and upload to PC for printing

11. Life time upgrade free by one-click smart cloud update

12.Large color screen LCD display, pattern design

Specification:

Covers 8 Battery Standards

Measure Standard Test Range

Cold cranking Amps (CCA) 100-2000CCA

Europe-Norm(EN)             100-2000CCA

International Electrot-Echnical Commission(IEC) 100-1400CCA

Cranking Amps(CA)                            100-2000CCA

Deutsche Industrie-Norm(DIN)          100-14000CCA

Battery Council International (BCI)    100-2000CCA

Marine Cranking Amps(MCA)            100-2000CCA

Society of Automotive Engineers(SAE) 100-2000CCA

GB                                                         30-220AH

Japanese Industry Standard(JIS)          126A17-245H52
