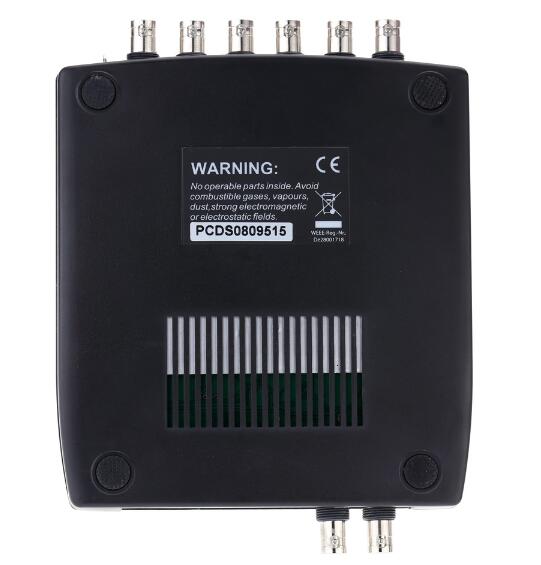

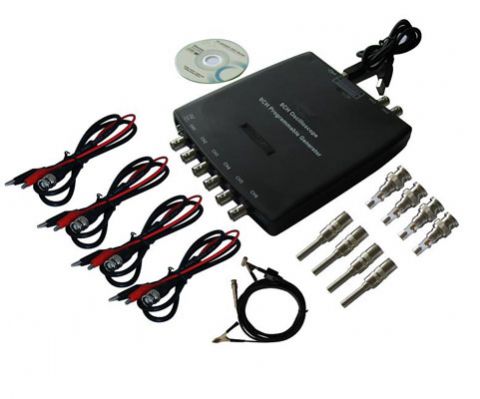

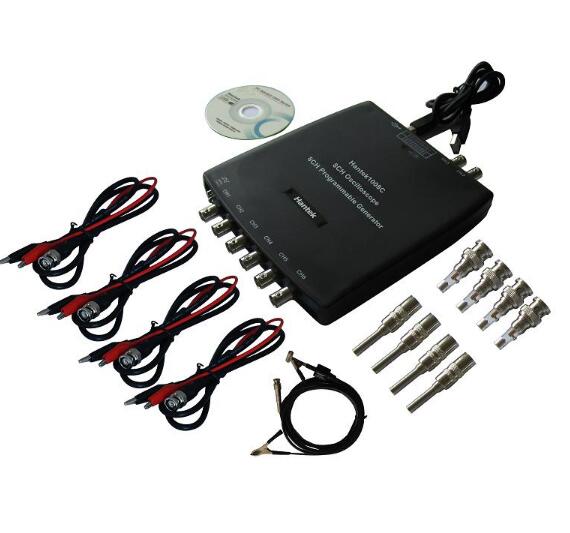

8 Channels Oscilloscope or Vehicle Testing
Features:
----Highly efficient and cost-effective;
----8 channels oscilloscope for vehicle testing;
----2.4MSa/s real time sampling rate, 12bit vertical resolution;
----DAQ card function;
----8 channels programmable generator which can analog signals of crankshaft, camshaft.
----USB 2.0 interface plug and play, and no need extra power supply;
----More than 20 types of automatic testing function, a similar interface with benchtop oscilloscope, easy to use;
----Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7, Windows 8.
Vehicle Testing
----First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition
----Ignition: primary and secondary
----Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position
----Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus
----Performer: Petrol/Diesel
----Starter and charging circuits
Oscilloscope
----8 channels oscilloscope, 2.4MSa/s real time sampling rate
----12 bits vertical resolution, spectrum analysis function
Programmable Generator
----8 channels programmable generator
----Can analog signals of crankshaft, camshaft etc.
| Oscilloscope Mode |
| Vertical System |
| Analog Channel |
8 |
| Input Impedance |
Resistance: 1MΩ |
| Input Sensitivity |
10mV/div to 5V/div |
| Input Coupling |
DC |
| Resolution |
12 bits |
| Horizontal System |
| Memory Depth |
4K |
| Max. Input |
400V (DC+AC Peak) |
| Real-Time Sampling Rate |
2.4MSa/s |
| Time BaseRange |
1ns/div to 20000s/div(1-2-5sequences) |
| Time Base Precision |
±50ppm |
| Trigger System |
| Time Base Range |
1ns/div to 20000s/div(1-2-5sequences) |
| Time Base Precision |
±50ppm |
| Trigger Source |
CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8 |
| Trigger Mode |
Edge |
| X-Y Mode |
| X-Axis Input |
CH1 |
| Y-Axis Input |
CH2 |
| Cursors and Measurement |
| Voltage Measurement |
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot |
| Time Measurement |
Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Cursors Measurement |
Horizontal ,Vertical, Track, Auto Measure Modes |
| Waveform Signal Process |
+,- , x,÷, FFT, Invert |
| Voltage Range |
10mV to 5V/div @ x 1 probe
100mV to 50V/div @ x 10 probe
10V to 5000V/div @ x 1000 probe
100V to 50000V/div @ x 10000 probe
200mV to 100V/div @ 20:1 |
| Current Range |
100mA to50.0A/div @ CC65(20A)
1000mA to500.0A/div @ CC65(65A)
1A to100.0A/div @ CC650(60A)
1A to200.0A/div @CC1100(100A)
10A to2000.0A/div @CC1100(1100A) |
| FFT |
Rectangular, Hanning, Hamming, Blackman Window |
| Math |
Addition, subtraction, multiplication, division |
| Programmable Generator |
| Channel |
8 |
| Output Level |
LVTTL |
| Frequency Range |
0-250kHz |
| Interface |
USB 2.0 |
| Power |
No need extra power supply |
| Size & Weight |
185 x 150 x 27 (mm); 0.35kg |
