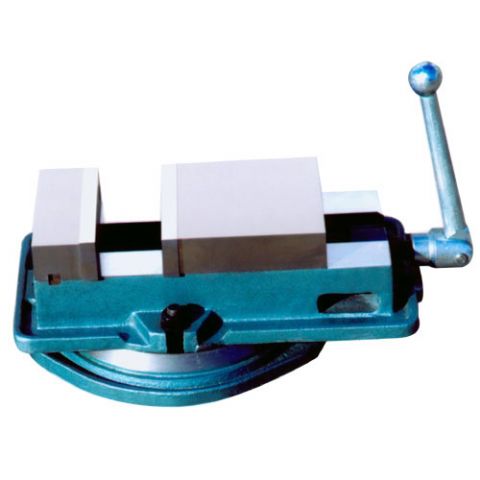

Lock Down Jaw Machine Vises,
Sliding surface of the vise bed is flame hardened and ground
Hardned jaw and bed maintain accuracy for long
Needled bearing of thrust collar cuts friction and increases clamping pressure
No work piece tilt after clamping
The swivel basis graduated fully through 360°
Tilt lock mechanism creates downward pressure on jaw ensuring both jaws are parallel during clamping; eliminating jaw tilt
Vice can be converted from swivel base to fix by removing the base
Range: 4 5 6 8 both in Metric or inch are available
|
Order No
|
Type
|
Jaw Width(mm)
|
Jaw Height（mm)
|
Jaw Open(mm)
|
Weight(kg)
|
|
QG-100
|
100/4
|
100
|
34
|
95
|
20
|
|
QG-125
|
125/5
|
125
|
36
|
105
|
30
|
|
QG-150
|
150/6
|
150
|
45
|
142
|
30
|
|
QG-200
|
200/8
|
200
|
62
|
180
|
70
|
