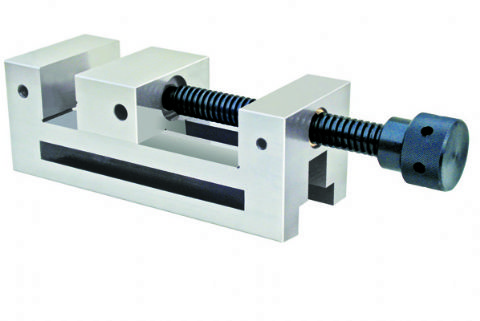

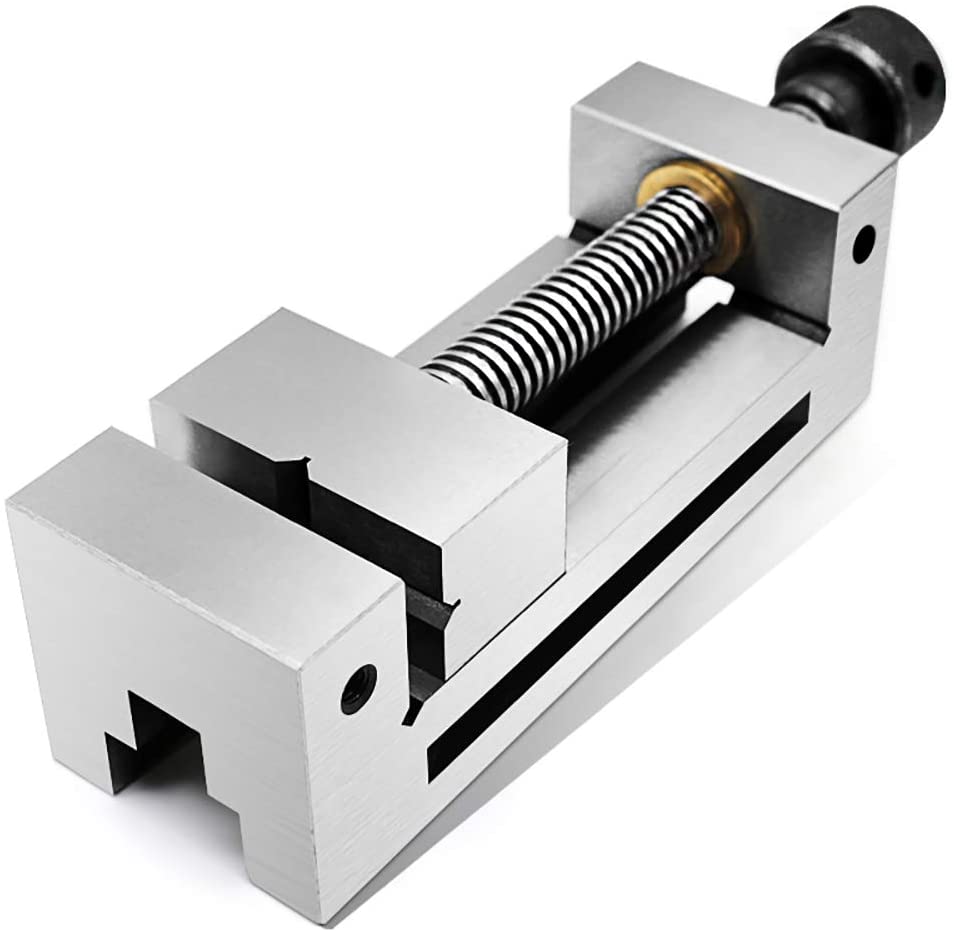

Precision Toolmakers Vise, made of high-quality alloy steel, the hardness of workng surface reaches HRC58-62.

Parallelism: 0.005mm/100mm.

Quick to clamp and easy to operate.

Used for precision measurement and inspect precisin grinding. EDM and wire-cutting machine.



  Order NO.           Width(mm)            Depth(mm)           Open(mm)           L (mm)         Weight(kg)

TMSV-3050                  50                            25                          65                       155                   3.0

TMSV-3060                  60                            25                          55                       110                   2.4

TMSV-3063                  63                            32                          85                       190                   3.8

TMSV-3073                  35                            35                         100                      210                   5.0

TMSV-3080                  80                            40                         100                      220                   6.5

TMSV-3088                  88                            40                         125                      250                   11.0

TMSV-3100                 100                           45                         125                      260                   13.0

TMSV-3125                 125                           50                         160                      300                   19.5

TMSV-3125A               125                           50                         210                      350                   23.0

TMSV-31150               150                           50                         175                      315                   23.8
