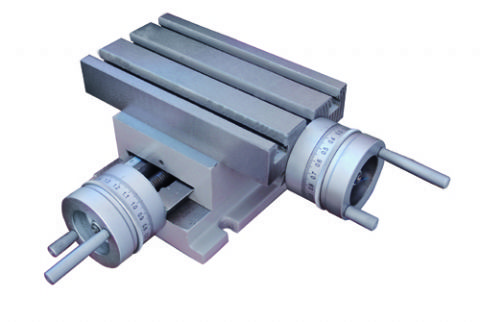

Cross Slide Table For Milling And Drilling
Zoom Browse
Product Name: Cross Slide Table For Milling And Drilling
Product Numbers: CRST-10031
Product Unit: High precision
Product Remark: Milling And Drilling
Product Class:Machinery and Engineering Tools > Vises and Clamps > Cross Slide Table
Product Details
【DateTime:2015-10-25 Browse:】【Font: Big Mid Small】【Print】【Close】
Cross Slide Table For Milling And Drilling






Model

A

B

C

D

E

F

G

H

J

K

X travel

Y travel

Qty/ctn

Packing size

NW/GW

CRST-10031

185

100

10

35

102

170

130

115

100

96

80

50

1

28×28×17

10.5/11.5
CRST-10032 225 175 12 72 108 225 175 148 160 96 105 90 1 36×36×20 16/17
CRST-10033 330 220 12 72 115 275 220 190 275 96 190 100 1 41*35.6*17.3 23/26
CRST-10034 425 240 12 72 125 335 276 240 245 144 225 150 1 56*44*18.5 41.5/45
CRST-10035 600 240 12 72 125 335 276 240 245 144 400 150 1 77.2*44*18 51/56

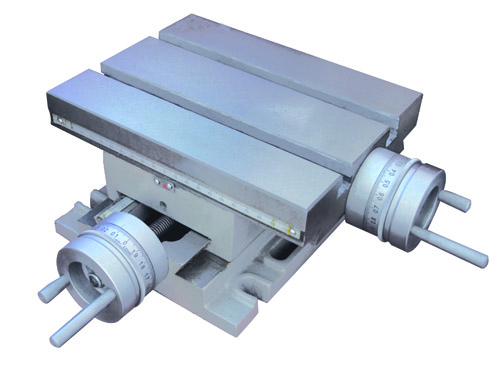

CRST-10032 Cross Slide Table

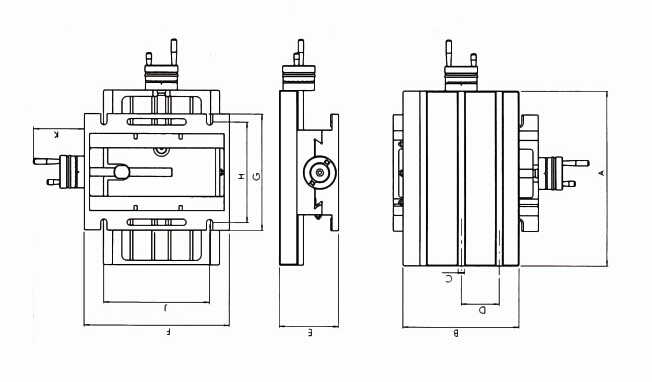

drawing
