Morse Taper Adapter With Drawbar DIN6364
Zoom Browse

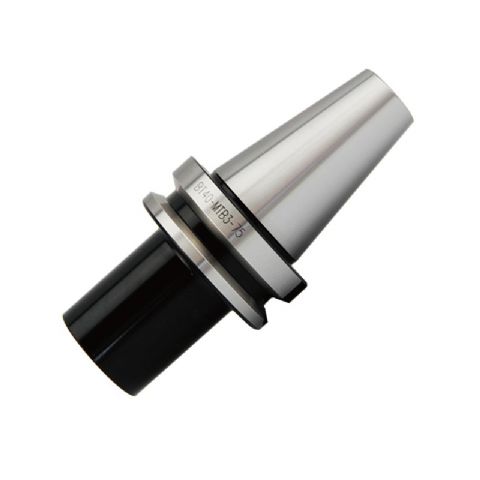

Product Name: Morse Taper Adapter With Drawbar DIN6364
Product Numbers: MTB
Product Specifications: MTB 1-45
Product Unit: MTB2-60
Product Class:Machinery and Engineering Tools > Tool Holder > BT Series Chuck Tool Holder
Product Details
【DateTime:2018-12-18 Browse: 163】【Font: Big Mid Small】【Print】【Close】

Model
01
MT. NO.
L
D
Wt( kg)
BT30-MTB 1-45 31.75   45 25 0.55
BT30-MTB2-60 31.75 2 60 32 0.6

BT40-MTB 1-45 44.45   45 25 1.05
BT40-MTB2-45 44.45 2 45 32 1.85
BT40-MTB3-75 44.45 3 75 40 1.9
BT40-MTB3-90 44.45 3 90 40 2.27
BT40-MTB4-75 44.45 4 75 48 1.6
BT40-MTB4-95 44.45 4 95 48 2.02

BT50-MTB 1-45 69.85   45 25 3.8
BT50-MTB2-60 69.85 2 60 32 4.2
BT50-MTB3-65 69.85 3 65 40 4.31
BT50-MTB4-210 69.85 4 210 48 10.21
