Sheet Metal Pan & Box Brakes
Zoom Browse

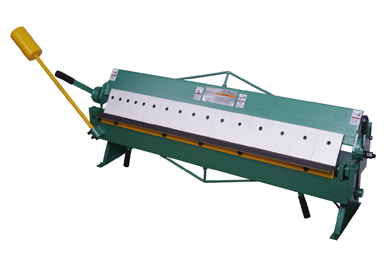

Product Name: Sheet Metal Pan & Box Brakes
Product Numbers: SB-1048
Product Specifications: 22 Gauges
Product Remark: Box brakes supplier
Product Class:Machinery and Engineering Tools > Sheet metal > Hand Brakes
Product Details
【DateTime:2009-10-13 Browse:】【Font: Big Mid Small】【Print】【Close】
 Sheet Metal Pan & Box Brakes
Order No
SB-2048
SB-1048
Capacity:mild Steel
22 Gauges
16 Gauges
Stainless Steel
26 Guges
20 Gauges
Max.Beam Lift
7/8"
1-1/4"
Max.Bead Length
48-1/4"
48-1/4"
Min. Reverse Bend
5/16"
5/16"
Finger Width
2" 3" 4"
2" 3" 4"
Number of Fingers
16"
16"
Max. Box Depth
3"
3"
Beam Adjustment
0-1/8"
0-5/8"
