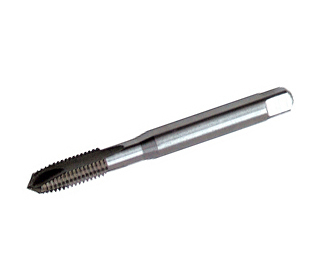

DIN 371 W/BSF High Speed Taps With Spiral Point
Zoom Browse
Product Name: DIN 371 W/BSF High Speed Taps With Spiral Point
Product Numbers: TAPS-12501
Product Specifications: Size: W1/16-60
Product Unit: Over Length: 40-100
Product Remark: DIN 371 W/BSF
Product Class:Machinery and Engineering Tools > Cutting Tools For Machine > Taps DIN
Product Details
【DateTime:2015-06-28 Browse:】【Font: Big Mid Small】【Print】【Close】
 DIN 371 W/BSF High Speed Taps With Spiral Point
   British Whitworth fine thread
   British Whitworth
   Material: HSS, Gcr15.
   OEM Welcomed


Order No
Size (mm)
Over length (mm)
Flute Length (mm)
TAPS-12501
W1/16-60
40
8
TAPS-12502
W3/32-48
50
9
TAPS-12503
W1/8-40
56
11
TAPS-12504
W5/32-32
63
13
TAPS-12505
W3/16-24
70
15
TAPS-12506
W7/32-24
80
16
TAPS-12507
W1/4-20
80
17
TAPS-12508
W5/16-18
90
20
TAPS-12509
W3/8-16
100
22
TAPS-12510
BSF3/16-32
70
15
TAPS-12511
BSF1/4-26
80
17
TAPS-12512
BSF5/16-22
90
20
TAPS-12513
BSF3/8-20
100
22
