Applications:
   Steel and cast steel, alloyed and non-alloyed up to a strength of 1000 N/mm², free-cutting steel, malleable cast iron, speroidal iron, aluminium, brass long-chipping, copper, bronze, plastics etc.

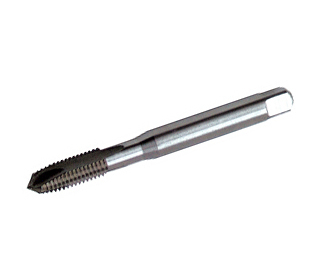

    Straight flutes with spiral point, Chamfer form B (4-5 threads lead)  (2-3 threads lead).
    Ground profile  and relief ground flanks.
    For through holes with 2 x d.

    For metric ISO-thread according to DIN 13, tolerance ISO 2 (h6)



Order No	Size (mm)	Over length (mm)	Flute Length (mm)
TAPS-12401	No.1-64UNC	40	8
TAPS-12402	NO.2-56UNC	45	9
TAPS-12403	NO.3-48UNC	50	9
TAPS-12404	NO.4-40UNC	56	11
TAPS-12405	NO.5-40UNC	56	11
TAPS-12406	NO.6-32UNC	56	12
TAPS-12407	NO.8-32UNC	63	13
TAPS-12408	NO.10-24UNC	70	15
TAPS-12409	NO.12-24UNC	80	16
TAPS-12410	1/4-20UNC	80	17
TAPS-12411	5/16-18UNC	90	20
TAPS-12412	3/8-16UNC	100	22
TAPS-12413	NO.0-80UNF	40	8
TAPS-12414	NO.1-72UNF	40	8
TAPS-12415	NO.2-64UNF	45	9
TAPS-12416	NO.3-56UNF	50	9
TAPS-12417	NO.4-48UNF	56	11
TAPS-12418	NO.5-44UNF	56	11
TAPS-12419	NO.6-40UNF	56	12
TAPS-12420	NO.8-36UNF	63	13
TAPS-12421	NO.10-32UNF	70	15
TAPS-12422	NO.12-32UNF	80	16
TAPS-12423	1/4-28UNF	80	17
TAPS-12424	5/16-24UNF	90	20
TAPS-12425	3/8-24UNF	100	22
