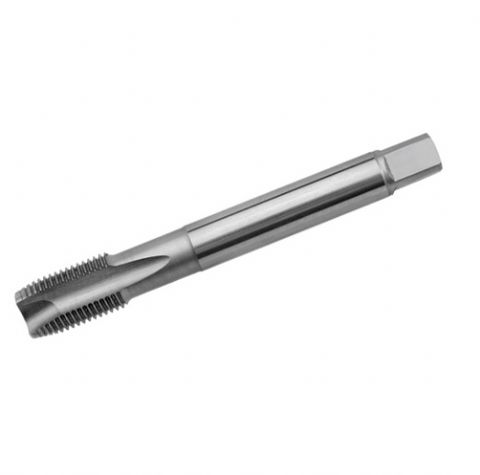

DIN 5156 Pipe Thread G/BSP Machine Taps (2pcs) Sets
Zoom Browse
Product Name: DIN 5156 Pipe Thread G/BSP Machine Taps (2pcs) Sets
Product Numbers: TAPS-10501
Product Specifications: Nominal Size G1/16---G2
Product Unit: Thread: DIN ISO228
Product Remark: Flute type: Straight
Product Class:Machinery and Engineering Tools > Cutting Tools For Machine > Taps DIN
Product Details
【DateTime:2015-06-19 Browse:】【Font: Big Mid Small】【Print】【Close】
DIN 5156 Pipe Thread G/BSP Machine Taps (2pcs) Sets
  Material: HSS or alloy tool steel
  Finish: Bright
  Thread: DIN ISO228
  Process: Cut thread, ground, fully ground.
  Flute type: Straight

Specifications:
Order No
Nominal Size (mm)
Over length (mm)
Flute Length (mm)
TAPS-10501
G1/16-28
90
22
TAPS-10502
G1/8-28
90
20
TAPS-10503
G1/4-19
100
22
TAPS-10504
G3/8-19
100
22
TAPS-10505
G1/2-14
125
25
TAPS-10506
G5/8-14
125
25
TAPS-10507
G3/4-14
140
28
TAPS-10508
G7/8-14
150
28
TAPS-10509
G1-11
160
30
TAPS-10510
G1-1/8 --11
170
30
TAPS-10511
G1-1/4 --11
170
30
TAPS-10512
G1-1/2 --11
190
32
TAPS-10513
G1-3/4 --11
190
32
TAPS-10514
G2 --11
220
40

Note: We reserve the right to change Technical specification without prior notice
