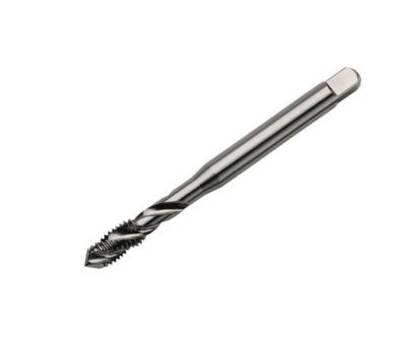

DIN371 Threading Cutting Tools Machine Taps With Spiral Flute
Zoom Browse
Product Name: DIN371 Threading Cutting Tools Machine Taps With Spiral Flute
Product Numbers: TAPS-12801
Product Specifications: NO.1-64UNC--NO.12-24UNC
Product Remark: Standard: DIN371 UNC/UNF
Product Class:Machinery and Engineering Tools > Cutting Tools For Machine > Taps DIN
Product Details
【DateTime:2015-06-28 Browse:】【Font: Big Mid Small】【Print】【Close】
DIN371 Threading Cutting Tools Machine Taps With Spiral Flute

  Standard: DIN371
Order No
Size (mm)
Over length (mm)
Flute Length (mm)
TAPS-12801
NO.1-64UNC
40
8
TAPS-12802
NO.2-56UNC
45
9
TAPS-12803
NO.3-48UNC
50
9
TAPS-12804
NO.4-40UNC
56
11
TAPS-12805
NO.5-40UNC
56
11
TAPS-12806
NO.6-32UNC
56
12
TAPS-12807
NO.8-32UNC
63
13
TAPS-12808
NO.10-24UNC
70
15
TAPS-12809
NO.12-24UNC
80
16
TAPS-12810
1/4-20UNC
80
17
TAPS-12811
5/16-18UNC
90
20
TAPS-12812
3/8-16UNC
100
22
TAPS-12813
NO.0-80UNF
40
8
TAPS-12814
NO.1-72UNF
40
8
TAPS-12815
NO.2-64UNF
45
9
TAPS-12816
NO.3-56UNF
50
9
TAPS-12817
NO.4-48UNF
56
11
TAPS-12818
NO.5-44UNF
56
11
TAPS-12819
NO.6-40UNF
56
12
TAPS-12820
NO.8-36UNF
63
13
TAPS-12821
NO.10-32UNF
70
15
TAPS-12822
NO.12-32UNF
80
16
TAPS-12823
1/4-28UNF
80
17
TAPS-12824
5/16-24UNF
90
20
TAPS-12825
3/8-24UNF
100
22
