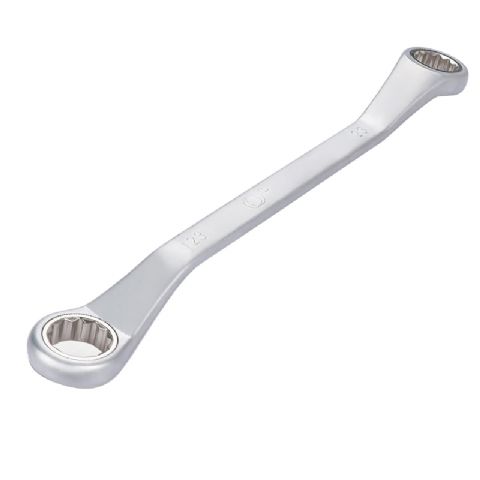

Two Directions Offset Box Wrench Spanner with Large Torque
Zoom Browse
Product Name: Two Directions Offset Box Wrench Spanner with Large Torque
Product Numbers: OBWR-14001-10
Product Specifications: Size: 10-24mm
Product Unit: igger torque than other spanner
Product Remark: Fast rotation, fast tightening
Product Class:Hand Tools and Hardware Tools > Wrench > Offset Box Wrench
Product Details
【DateTime:2024-10-26 Browse:】【Font: Big Mid Small】【Print】【Close】

High Neck Bigger Torque Offset Box Wrench Box Spanner

Features:

Bigger torque than other spanner

Small turning angle, used in narrow area

Fast rotation, fast tightening

Double direction

The head is high and the neck is tilted 10 degree, match ergonomics

Unit: mm

Size Length width Thickness Min Angle Standard torque Roktools torque Standard fatigue      Roktools fatigue
10 200 21.0 8.3 6.0 43 65 5000 10000
11 210 22.5 8.7 6.0 52 78 5000 10000
12 220 24.0 9.1 6.0 59 89 5000 10000
13 230 25.5 9.5 6.0 70 105 5000 10000
14 240 27.0 10.0 5.0 79 119 5000 10000
15 250 28.5 10.4 5.0 100 150 5000 10000
16 260 30.0 10.8 5.0 124 186 5000 10000
17 270 31.5 11.2 4.3 134 201 5000 10000
18 280 33.0 11.7 4.3 152 228 5000 10000
19 290 34.5 12.1 4.3 162 243 5000 10000
20 300 36.0 12.5 3.8 174 261 5000 10000
21 310 37.5 13.0 3.8 186 279 5000 10000
22 320 39.0 13.4 3.8 228 342 5000 10000
23 330 40.5 13.8 3.8 240 360 5000 10000
24 340 42.0 14.2 3.3 255 383 5000 10000
