Torque Multiplier Wrench Tools Manual
Zoom Browse
Product Name: Torque Multiplier Wrench Tools Manual
Product Numbers: TOMU-31001
Product Specifications: 1500-20000N.m
Product Unit: multiplier wrench
Product Class:Hand Tools and Hardware Tools > Torque Wrenches > Torque Multiplier
Product Details
【DateTime:2023-09-15 Browse:】【Font: Big Mid Small】【Print】【Close

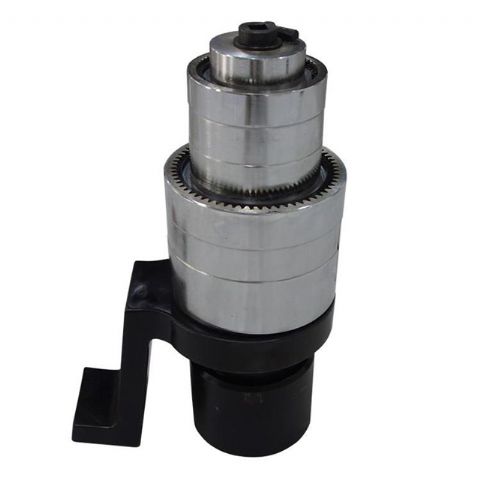

     Torque amplifiers , or torque multimpliers, are used at power plant and other production maintenance and installation sites in variou industries. It is very difficult to tighten and remove large-diameter bolts and nuts in narrow area, especially in environments where it is difficult for operators to perform construction (such as the space around the equipment is small and intensifier rods cannot be used) and various special wrenches, etc.), the torque amplification wrench successfully can help you fundamentally solve this problem. It consists of a torque amplifier, a torque device, a reaction arm claw (reaction foot) and a socket wrench. The operator only needs to apply a small force to obtain an output torque of 4-70 times, thereby completing the tightening of bolts and nuts easily. Solid disassembly work. Each set comes with an aluminum alloy carrying case
Main feature:

  1. Suitable for construction sites with small space.
  2. Light and convenient manual operation.
  3. Socket wrenches of different specifications can be exchanged to accommodate a variety of large diameter bolts and nuts.
  4. Smaller tool diameter and torque output.
  5. The product is designed in series.



Specification:

Part No

Nut diameter

nut diagonalmm

Drive

ratio

Out put N.m

Weight(kg)

TOMU-31001-15

M20-M30

S30-S46

1/2

  1:4.8

1500

2.6

TOMU-31001-20

M22-M36

S32-S55

1/2

1:17

2000

3.9

TOMU-31001-35

M30-M45

S46-S70

1/2

1:20

3500

5.5

TOMU-31001-55

M36-M52

S55-S80

1/2

1:23.4

5500

7.5

TOMU-31001-75

M42-M60

S65-S90

1/2

1:25.8

7500

10

TOMU-31001-100

M52-M72

S80-S105

1/2

1:67.5

10000

17

TOMU-31001-150

M60-M80

S90-S115

1/2

1:74.8

15000

25

TOMU-31001-200

M72-M95

S105-S135

1/2

1:96.8

20000

31
