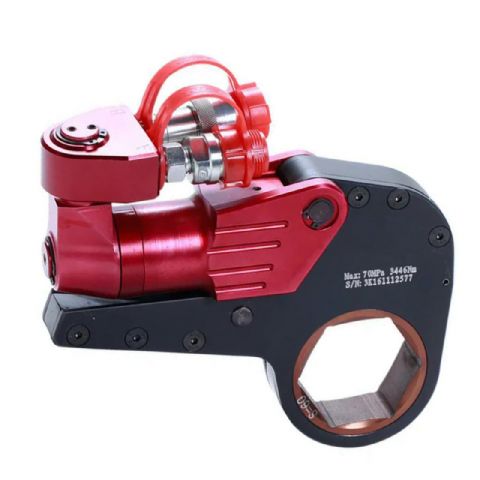

Hydraulic torque wrench cassette low profile
1) The HYTW-12000 low profile torque wrench adopts an integrated design and is made of aluminum-titanium alloy, which makes it stronger and tougher.
2) The working head and fulcrum of HYTW-12000 low profile hydraulic wrench are coaxial, with perfect structure and long service life. One power head can match different working heads.
3) HYTW-12000 low profile hydraulic torque wrench can run smoothly under a pressure of 70MPa, and have high accuracy, with a torque repeatability of ±3%. The 360×180 degree rotary joint allows it to be operated more freely in any small space
Specification
| Model |
12002 |
12003 |
12004 |
12008 |
12014 |
12018 |
12020 |
12030 |
12040 |
12045 |
12060 |
Torque
(Nm) |
237
2370 |
345
3446 |
546
5458 |
1055
10550 |
1848
18484 |
2481
24814 |
2909
29089 |
4231
42311 |
5209
52088 |
6057
60566 |
8415
84150 |
A/F
(mm) |
36-55 |
36-60 |
46-80 |
70-105 |
80-115 |
85-120 |
90-130 |
95-145 |
120-145 |
130-155 |
135-180 |
Power head Weight
(kg) |
0.8 |
0.8 |
1.9 |
4.2 |
6.8 |
8.1 |
10.5 |
12.7 |
15.2 |
16.3 |
23 |
Working head weight
(kg) |
1.5 |
1.7 |
3.6 |
7.6 |
12.2 |
19.3 |
22.3 |
32.3 |
47.5 |
58.7 |
75 |
L
(mm) |
192 |
218 |
266 |
324 |
382 |
404 |
427 |
479 |
479 |
486 |
514 |
H1
(mm) |
105 |
118 |
139 |
171 |
205 |
229 |
240 |
268 |
285 |
311 |
336 |
H2
(mm) |
147 |
156 |
167 |
198 |
231 |
255 |
265 |
289 |
302 |
352 |
375 |
W1
(mm) |
32 |
32 |
42 |
53 |
64 |
68 |
70 |
85 |
98 |
105 |
117 |
W2
(mm) |
50 |
50 |
66 |
83 |
99 |
105 |
110 |
132 |
148 |
160 |
177 |
