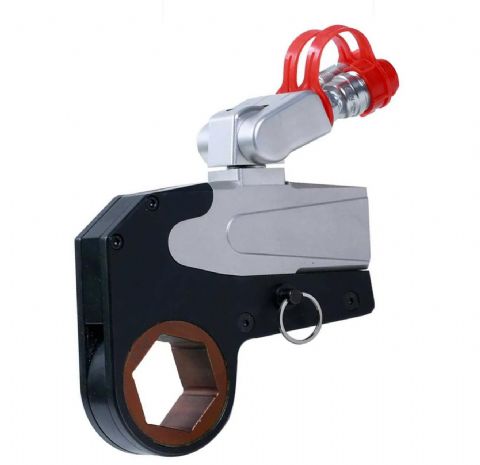

Low Profile Hydraulic Torque Wrench
Low profile hydraulic torque wrench hy titanium alloy
-Made of aluminum alloy, Lighter and robust.
-360×180 degree rotary joint
-Low profile wrench can be used in narrow area.
-Covering torques ranging from 233Nm to 140000Nm
-Interchangeable ratchet cassettes
| Model | 14001 | 14003 | 14004 | 14006 | 14008 | 14015 | 14025 | 14035 | 14050 | 14095 |
| Torque(Nm) | 225
2252 | 333
3337 | 523
5227 | 753
7537 | 1175
11753 | 1932
19322 | 3262
32621 | 5223
52235 | 7517
75172 | 14616
146167 |
| A/F(mm) | 36-60 | 41-60 | 46-80 | 55-85 | 70-105 | 80-115 | 90-130 | 120-145 | 130-180 | 155-190 |
| Weight(kg) | 2.1 | 3.7 | 4.5 | 7.5 | 8.9 | 17.3 | 25.2 | 35.5 | 47.8 | 150 |
| L1(mm) | 120.5 | 144 | 156 | 179 | 207 | 237 | 273 | 338 | 382 | 492 |
| L2(mm) | 156 | 185 | 202 | 232 | 270 | 309 | 361 | 447 | 517 | 665 |
| L3(mm) | 191 | 223 | 232 | 256 | 291 | 335 | 383 | 456 | 539 | 670 |
| H1(mm) | 100 | 113 | 119 | 145 | 168 | 197 | 230 | 280 | 320 | 400 |
| H2(mm) | 144.5 | 156 | 161 | 187 | 210 | 237 | 272 | 345 | 383 | 458 |
| H3(mm) | 142 | 148 | 152 | 179 | 200 | 227 | 255 | 294 | 400 | 425 |
| W1(mm) | 34 | 36 | 42 | 45 | 53 | 64 | 70 | 84 | 94 | 160 |
| W2(mm) | 36 | 38 | 46 | 49 | 57 | 68 | 78 | 92 | 102 | 168 |
| W3(mm) | 50 | 55 | 60 | 65 | 75 | 90 | 100 | 118 | 140 | 180 |
| A(mm) | 9 | 10 | 12 | 13 | 14.5 | 19 | 21.3 | 25 | 34 | 62 |
