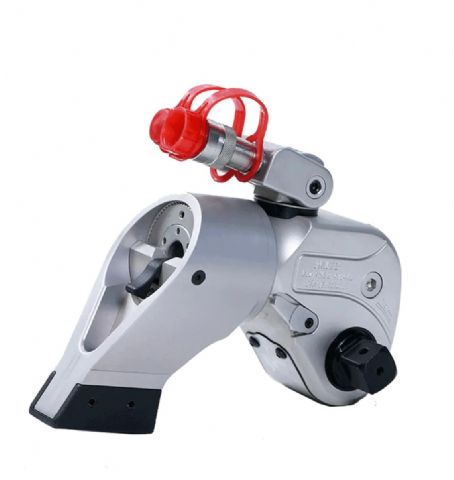

Hydraulic torque wrenches square drive 1) HTTW-13000 series square drive hydraulic torque wrench is made of aviation aluminum alloy material. Its quality and durability are well guaranteed. The one-piece design makes it more widely used and more adaptable. 2) HTTW-13000 With advanced precision ratchet drive. The torque output accuracy is higher, and the maximum output repetitive torque is ±3%. The maximum working pressure is 70MPa, with 12 models with torque ranging from 185Nm to 160000Nm 3)HTTW-13000 series square drive hydraulic torque wrench equipped with 360° x180° rotary tubing joint,  with wide range of applications. The 360° x180 ° trigger lock can place the 360° fine-tuning reaction arm on any fulcrum. The direct-push drive shaft design can quickly switch between tightening and disassembly states Specification

HTTW	13001	13003	13005	13008	13010	13015	13020	13025	13035	13045	50MXTD	65MXTD	75MXTD	95MXTD
Torque (Nm)	185 1852	436 4364	779 7789	1072 10715	1553 15528	2050 20501	2617 26171	3493 34928	4963 49627	5912 59123	7032 70315	8451 84512	10512 105120	14085 140848
Weight (Kg)	2.7	4.8	8.8	12	14.5	19	25	37.5	44	63	89	66	81	220
L1 (mm)	138	168	207	226	250	281	304	331	390	412	418	471	507	520
L2 (mm)	194	244	296	326	366	402	442	483	558	570	596	660	729	758
L3 (mm)	63	79	99	110	120	132	146	158	177	188	195	204	240	246
H1 (mm)	50	70	80	90	100	112	120	138	150	163	166	182	190	210
H2 (mm)	73	99	124	133	146	165	183	202	219	229	236	263	291	307
H3 (mm)	96	125	152	170	186	208	226	250	282	288	300	348	392	415
H4 (mm)	140	165	193	211	227	249	267	291	323	332	366	407	447	473
R1 (mm)	26	34	40	46	50	56	60	66	77	80	82	95	108	115
R2 (mm)	107	132	162	178	199	218	240	260	298	303	325	345	380	400
Square Drive	3/4”	1”	1 1/2”	1 1/2”	1 1/2”	2”	2 1/2”	2 1/2”	2 1/2”	2 1/2”	3”	3”	3 1/2”	4”
