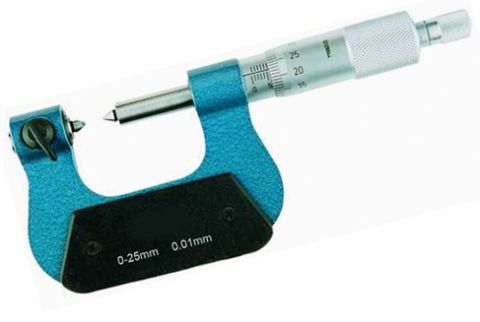

Mechanical Screw Thread micrometer(Non-rotating spindle)

Product Name: Mechanical Screw Thread micrometer(Non-rotating spindle)

Product Numbers: DM-123101

Product Specifications: 0-200mm/0-8

Product Remark: 60 ° Or 55° V-shaped or knife-edged anvils

Product Class:Measuring Tools > Micrometer > Special Micrometers

Product Details

【DateTime:2010-10-30 Browse:】【Font: Big Mid Small】【Print】【Close】

Screw Thread Micrometers Features:

1. 60 ° Or 55° V-shaped and knife-edged anvils( inchangeable)

2. Size of anvil_tail: 5-15mm

3.Resolution: 0.001mm/0.00005"

.A. Metric Screw(60° Thread), Pitch/inch
0.4-0.5mm/64-48TPI
0.6-0.9mm/44-28TPI
1-1.75MM/24-14TPI
2-3mm/13-9TPI
3.5-5MM/8-5TPI
5.5-7mm/4.5-3.5TPI
B. Withworth screw(55 ° Thread)
60-48TPI
48-40TPI
40-32TPI
32-24TPI
24-18TPI
18-14TPI
14-10TPI
10-7TPI
7-4.5TPI
4.5-3.5TPI

Metric

Order NO	Range	Resolution
DM-123101	0-25mm	0.01mm
DM-123102	25-50mm	0.01mm
DM-123103	50-75mm	0.01mm
DM-123104	75-100mm	0.01mm
DM-123105	100-125mm	0.01mm
DM-123106	125-150mm	0.01mm
DM-123107	150-175mm	0.01mm
DM-123108	175-200mm	0.01mm

Inch:

Order NO	Range	Resolution
DM-123101Y	0-1"	0.001"
DM-123102Y	1-2"	0.001"
DM-123103Y	2-3"	0.001"
DM-123104Y	3-4"	0.001"
DM-123105Y	4-5"	0.001"
DM-123106Y	5-6"	0.001"
DM-123107Y	6-7"	0.001"
DM-123108Y	7-8"	0.001"
