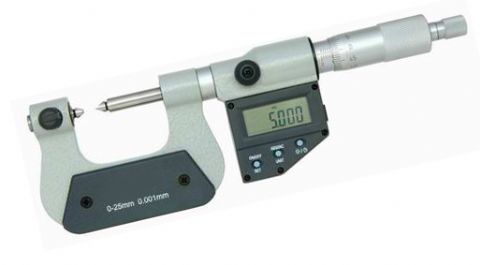

Electronic Screw Thread Micrometers
Zoom Browse
Product Name: Electronic Screw Thread Micrometers
Product Numbers: DM-133101
Product Specifications: 0-200mm/0-8
Product Remark: Size of anvil_tail: 5-15mm
Product Class:Measuring Tools > Micrometer > Special Micrometers
Product Details
【DateTime:2010-10-30 Browse:】【Font: Big Mid Small】【Print】【Close
 Electronica Screw Thread Micrometers Features:

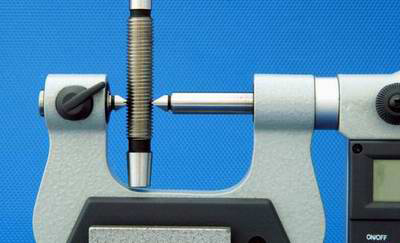

1. 60 ° Or 55° V-shaped and knife-edged anvils( inchangeable)
2. Size of anvil_tail: 5-15mm
3.Resolution: 0.001mm/0.00005"
.A. Metric Screw(60° Thread), Pitch/inch
0.4-0.5mm/64-48TPI
0.6-0.9mm/44-28TPI
1-1.75MM/24-14TPI
2-3mm/13-9TPI
3.5-5MM/8-5TPI
5.5-7mm/4.5-3.5TPI
B. Withworth screw(55 ° Thread)
60-48TPI
48-40TPI
40-32TPI
32-24TPI
24-18TPI
18-14TPI
14-10TPI
10-7TPI
7-4.5TPI
4.5-3.5TPI
Metric
Order NO
Range
Resolution
DM-133101
0-25mm
0.001mm
DM-133102
25-50mm
0.001mm
DM-133103
50-75mm
0.001mm
DM-133104
75-100mm
0.001mm
DM-133105
100-125mm
0.001mm
DM-133106
125-150mm
0.001mm
DM-133107
150-175mm
0.001mm
DM-133108
175-200mm
0.001mm



Inch:

Order NO
Range
Resolution
DM-133101Y
0-1"
0.00005"
DM-133102Y
1-2"
0.00005"
DM-133103Y
2-3"
0.00005"
DM-133104Y
3-4"
0.00005"
DM-133105Y
4-5"
0.00005"
DM-133106Y
5-6"
0.00005"
DM-133107Y
6-7"
0.00005"
DM-133108Y
7-8"
0.00005"


screw thread micrometer
