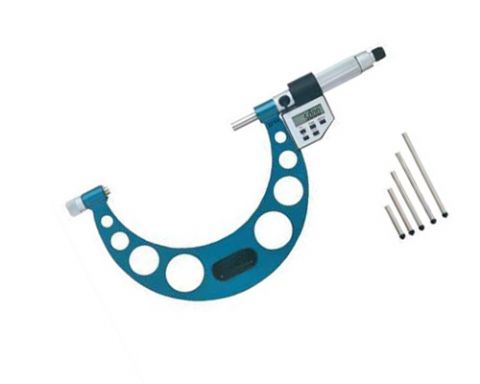

Electronic Micrometers with Interchangable Anvils
Zoom Browse
Product Name: Electronic Micrometers with Interchangable Anvils
Product Numbers: DM-150401
Product Specifications: 0-1000mm/0-40
Product Remark: double meauring forces
Product Class:Measuring Tools > Micrometer > Outside Micrometers
Product Details
【DateTime:2010-08-23 Browse:】【Font: Big Mid Small】【Print】【Close】
Electronic Micrometers with Interchangable Anvils Features:
1. Wide measuring range with interchangeable anvils.
2. Carbide measuring faces
3. Pipe combined frame for light weight and high rigidity(Over 300mm)
4. Double measuring forces or Ratchet stop

Metric


Order NO
Range
Resolution
Accuracy
DM-150401
0-50mm
0.001mm
             +/-0.004mm
DM-150402
50-100mm
0.001mm
             +/-0.005mm
DM-150403
0-100mm
0.001mm
             +/-0.005mm
DM-150404
100-200mm
0.001mm
             +/-0.007mm
DM-150405
200-300mm
0.001mm
             +/-0.009mm
DM-150406
300-400mm
0.001mm
             +/-0.011mm
DM-150407
400-500mm
0.001mm
             +/-0.013mm
DM-150408
500-600mm
0.001mm
             +/-0.015mm
DM-150409
600-700mm
0.001mm
             +/-0.016mm
DM-150410
700-800mm
0.001mm
             +/-0.018mm
DM-150411
800-900mm
0.001mm
             +/-0.020mm
DM-150412
900-1000mm
0.001mm
             +/-0.020mm


Order NO
Range
Resolution
Accuracy
DM-150413
0-150mm
0.001mm
             +/-0.006mm
DM-150414
150-300mm
0.001mm
             +/-0.009mm
DM-150415
300-450mm
0.001mm
             +/-0.011mm
DM-150416
450-600mm
0.001mm
             +/-0.015mm
DM-150417
600-750mm
0.001mm
             +/-0.016mm
DM-150418
750-900mm
0.001mm
             +/-0.020mm
DM-150419
900-1050mm
0.001mm
             +/-0.021mm
Inch

Order NO
Range
Resolution
Accuracy
DM-150401Y
0-2
0.00005
             +/-0.004mm
DM-150402Y
2-4
0.00005
             +/-0.005mm
DM-150403Y
0-4
0.00005
             +/-0.005mm
DM-150404Y
4-8
0.00005
             +/-0.007mm
DM-150405Y
8-12
0.00005
             +/-0.009mm
DM-150406Y
12-16
0.00005
             +/-0.011mm
DM-150407Y
16-20
0.00005
             +/-0.013mm
DM-150408Y
20-24
0.00005
             +/-0.015mm
DM-150409Y
24-28
0.00005
             +/-0.016mm
DM-150410Y
28-32
0.00005
             +/-0.018mm
DM-150411Y
32-36
0.00005
             +/-0.020mm
DM-150412Y
36-40
0.00005
             +/-0.020mm


Order NO
Range
Resolution
Accuracy
DM-150413Y
0-6
0.00005
             +/-0.006mm
DM-150414Y
6-12
0.00005
             +/-0.009mm
DM-150415Y
12-18
0.00005
             +/-0.011mm
DM-150416Y
18-24
0.00005
             +/-0.015mm
DM-150417Y
24-30
0.00005
             +/-0.016mm
DM-150418Y
30-36
0.00005
             +/-0.020mm
DM-150419Y
36-42
0.00005
             +/-0.021mm
