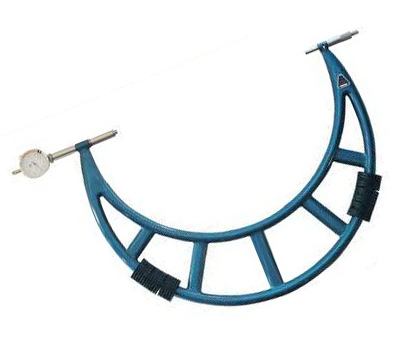

Slide Anvil Micrometers with Dial Indicator

Product Name: Slide Anvil Micrometers with Dial Indicator

Product Numbers: DM-110301

Product Specifications: Resolution: 0.01mm/0.001"

Product Remark: Anvil with dial indicator

Product Class:Measuring Tools > Micrometer > Outside Micrometers

Product Details

【DateTime:2010-08-01 Browse:】【Font: Big Mid Small】【Print】【Close】

Features:

1. Slide anvil with dial indicator for wide measuring range and high accuracy.

2.Travel of dail indicator: 5mm/10mm

3.Max measuring force: 10N.

4. Micrometers within 300mm/12" have steel plate frame, over 300mm/12" have pipe frame

5. Supplier with wood box.

METRIC

Order NO	Range	Resolution	Accuracy
DM-110301	0-100mm	0.01mm	0.006mm
DM-110302	100-200mm	0.01mm	0.007mm
DM-110303	200-300mm	0.01mm	0.008mm
DM-110304	300-400mm	0.01mm	0.009mm
DM-110305	400-500mm	0.01mm	0.010mm
DM-110306	500-600mm	0.01mm	0.011mm
DM-110307	600-700mm	0.01mm	0.012mm
DM-110308	700-800mm	0.01mm	0.013mm
DM-110309	800-900mm	0.01mm	0.014mm
DM-110310	900-1000mm	0.01mm	0.015mm

INCH

Order NO

Range

Resolution

Accuracy

DM-110301Y

0-4"

0.001"

0.006mm

DM-110302Y

4-8"

0.001"

0.007mm

DM-110303Y

8-12"

0.001"

0.008mm

DM-110304Y

12-16"

0.001"

0.009mm

DM-110305Y

16-20"

0.001"

0.010mm

DM-110306Y

20-24"

0.001"

0.011mm

DM-110307Y

24-28"

0.001"

0.012mm

DM-110308Y

28-32"

0.001"

0.013mm

DM-110309Y

32-36"

0.001"

0.014mm

DM-110310Y

36-40"

0.001"

0.015mm
