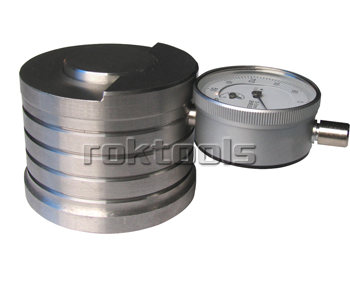

CNC Tool Z Axis Zero Setter(tool presetter)

Have the central measuring porfion of the zero setter presetter against a plain surface and aligned if with the outer reference surface. Turn the dial gauge for zero setting. Have the cutter touched against the z zero setter. Once the indicator position at zero, the distance between the tool tip to workpiece is 50mm.

Part No. ZS-202

Features:

Precise Zero setting for CNC Machine centers

Direct establishment of 0 point.
