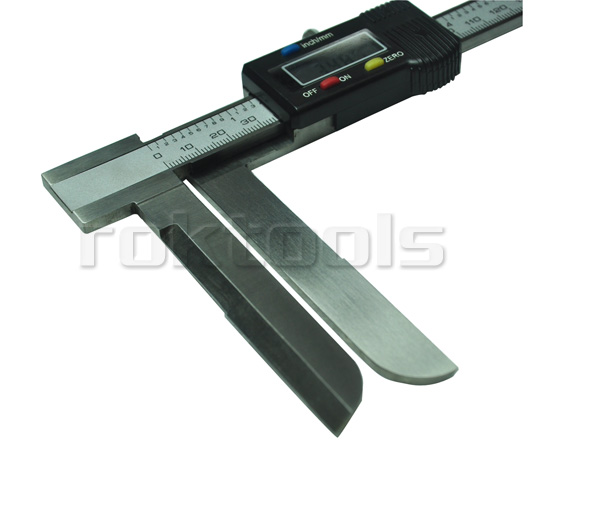

Inside Knife-edge Vernier Digital Calipers
Zoom Browse
Product Name: Inside Knife-edge Vernier Digital Calipers
Product Numbers: INDC-1001
Product Specifications: Range: 18-200mm
Product Unit: Width of Jaw: 12mm-24mm
Product Remark: for Deep Hole
Product Class:Measuring Tools > Calipers > Inside Caliper
Product Details
【DateTime:2014-06-06 Browse:】【Font: Big Mid Small】【Print】【Close
Inside Knife-edge Vernier Digital Calipers
Part No: INDC-1001
Features:
  • Designed for measuring the diameter of deep stepped holes.
  • With Data output.
  • Battery: RS or LR44
  • Auto Power off, Auto power on when moving.
  • High Accuracy.
  • Hardened and ground stainless steel.
  • Large LCD display.  with 10mm figure high.
  • With locking crew, can hold the digital part.
  • Strong beam. unbending

    Specification:

    Range: 15-150mm, 18-200mm, 20-300mm.

    Part No
    Range
    Resolution
    Accuracy
    lengh of Jaw
    INDC-1001
    15-150mm
    0.01mm
    +/-0.03mm
    60
    INDC-1002
    18-200mm
    0.01mm
    +/-0.04mm
    75
    INDC-1003
    20-300mm
    0.01mm
    +/-0.05mm
    90

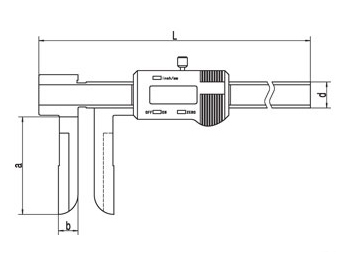

  • drawing

    inside caliper
