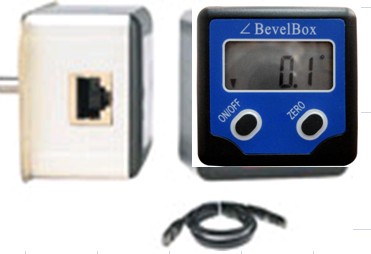

Similar to our popular Bevel Box, this is a tilt/incline angle sensor with a remote LCD display with a resolution of 0.1 degrees. As the angle sensor is rotated, a weighted internal pendulum provides a reference and the remote display calculates the angle. The remote display has the on/off button and a zero function button allowing the 10mm display to be set to zero degrees in any position. The gauge is powered by a standard 3V Li battery located behind a twist lock compartment on the rear of the display. Magnets allow mounting on steel or other ferrous surfaces.
          The display is linked to the angle sensor by a 1 metre Cat 5 cable. A longer cable can be used if required. This allows the display and angle sensor to be disconnected. The angle sensor has a mounting flange with two mounting holes. Please note: the sensor must not be subjected to harsh vibration. Protect sensor from coolant and moisture ingress. Possible uses include: circular saws, milling heads, tilting spindle moulders, engineers dividing heads, angle tables etc.

Range: 0-360°
