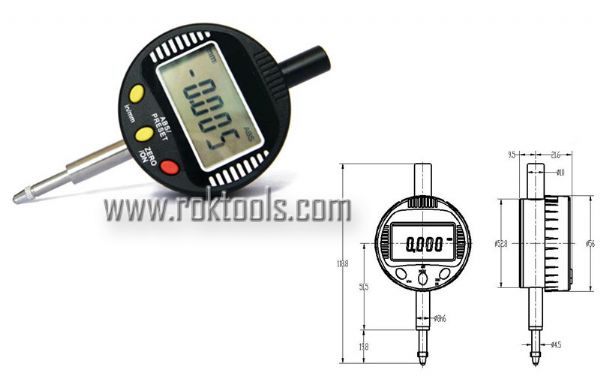

High Accuracy Micro Digital Indicators 0.001mm
Zoom Browse
Product Name: High Accuracy Micro Digital Indicators 0.001mm
Product Numbers: MDI-101
Product Specifications: 0-50.8mm/0.001mm
Product Unit: digital micron dial indicator
Product Remark: Three Keys with DATA OUTPUT
Product Class:Measuring Tools > Indicators Series > Digital Micron Indicators
Product Details
【DateTime:2008-12-16 Browse:】【Font: Big Mid Small】【Print】【Close
High Accuracy Digital Dial Micron Indicator Features
Measures distance, checks alignment, roundness and run-out on rotating shafts and rotors, cam shaft and valve guide wear,
1.manual/auto power off
2.preplace started position value,without reset before change the battery
3.counting converse
4.mm/in conversion
5.absolute and relative measurement
6.set zero at any position
7.TOL value setting
8.auto distinguish windage state
9.high-speed tracking maximum/minimum/extremum
10.run-out detector
11.number and finger simulate display
12.high capacity 3V Li battery
13.Maximum and minimum reading tracking
14. Stem diameter 8mm (3/8" is optional)
15. separated sensor and display

Tech Parameter:
Display:broad screen dispay
Maximum reaction speed:1.5m/s
Axis diameter:8mm(ISO/GB ) or 3/8〞(ANSI )
Point gauge:with M2.5X0.45 screw thread horniness metal ball or with#4-48UNF screw thread horniness metal ball
Battery life:2,000 hours

Order No
Range(mm)
Resolution(mm)
Accuracy(um)
Measuring Force
MDI-101
0-12.7
0.001
4
less than 1N
MDI-102
0-25.4
0.001
5
less than 1N
MDI-103
0-50.8
0.001
6
less than 1N
