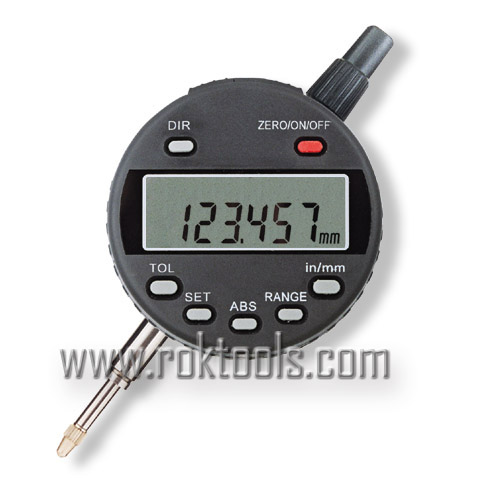

Rotatable Display Digital Indicator_

Rotatable Display Digital Indicator

Product Name: Rotatable Display Digital Indicator

Product Numbers: EDI-102

Product Specifications: 0-12.5mm

Product Remark: 330 degree ratatable display

Product Class:Measuring Tools > Indicators Series > Digital Indicators

Product Details

【DateTime:2008-11-28 Browse:】【Font: Big Mid Small】【Print】【Close】

Rotatable Display Digital Indicator

specification(patented)

Order No                                 EDI-102
Range                                      0-12.5mm(0-0.50")
Accuracy                                  ≤0.020mm/0.0008"
Resolution                               0.01mm/0.0005"
Max.response speed               1000mm/s
Max.Measuring Force               ≤1.2N
Display                                     LCD6-digit Display
Power Souce                           1.55V SR44 1pcs
Operating Teperature              0-+40oC
Relative humidity                     ≤80%
Storage Temperature              -20-+70oC
Remarks                                  330o Ratatable display

Order No	EDI-102
Range	0-12.5mm(0-0.50")
Accuracy	≤0.020mm/0.0008"
Resolution	0.01mm/0.0005"
Max.response speed	1000mm/s
Max.Measuring Force	≤1.2N
Display	LCD6-digit Display
Power Souce	1.55V SR44 1pcs
Operating Teperature	0-+40^oC
Relative humidity	≤80%
Storage Temperature	-20-+70^oC
Remarks	330^o Ratatable display
