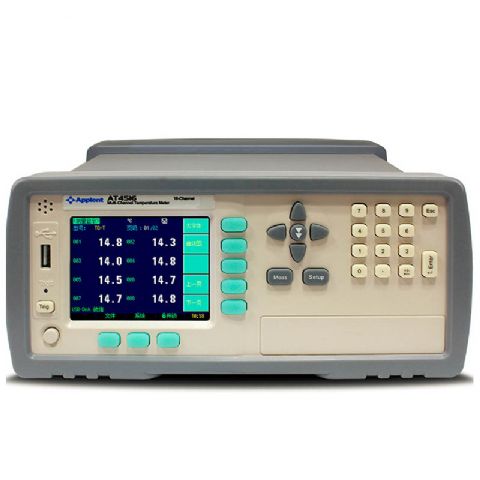

J, K, T, E, S, N ,B Thermocouple Temperature Meter
Feature:
-Scan speed: Fast/Med/Slow
-Cold Junction Compensation
-TFT True Color LCD Display.
-Interface: RS232C and USB Slaver Interface-USB-Disk Interface
-16 Channel thermocouple types: J, K, T, E, S, N and
-Full colour LCD screen
-Broken thermocouple checking
-High Accuracy
Specification:
| Graduation |
thermocouple:J/K/T/E/S/N/B |
| Accuracy |
0.2%+1ºC |
| Range |
-200ºC~1300ºC(Varying depend on graduation) |
| Resolution |
0.1ºC |
| Channels |
16 channels; 128 channels are available |
| Speed |
Fast: 100ms/channel Medium: 500ms/channel Low: 1s/channel |
| Correction |
Error correct for each channel |
| Comparator |
High/low beep Individual setting high/low value for each channel |
| Interface |
RS232C interface U-disc interface USB communication interface |
| Softer |
ATS45 data acquisition software |
| Cold Junction |
Accuracy: 0.5ºC |
| Other |
TFT-LCD True-color LCD display, broken thermocouple checking function |
| Power Supply |
Voltage: 85VAC-260VAC Frequency: 50Hz/60Hz Power: 10VA |
| Dimension & Weight |
216mm(Width)x88mm(Height)x300mm(Depth) 3kg |
| Accessories |
AT4516: K thermocouple 16 teams |
