8 LED USB Powered Digital Microscope with 2.0 Mega Pixels
Zoom Browse
Product Name: 8 LED USB Powered Digital Microscope with 2.0 Mega Pixels
Product Numbers: DIMI-12002
Product Specifications: Image sensor: 5MP
Product Unit: Focus range: Manual focus from 10mm to 500mm
Product Remark: Magnification Ratio 20x to 200x
Product Class:Measuring and Testing Instruments > Optical Instruments > USB TV Microscope
Product Details
【DateTime:2014-05-17 Browse:】【Font: Big Mid Small】【Print】【Close
8 LED USB Digital Microscope with 2.0 Mega Pixels

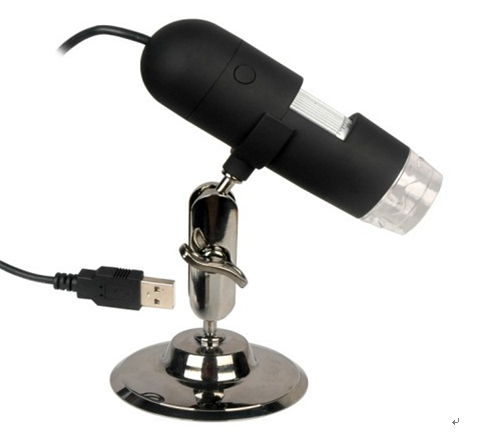

A USB microscope with a simple but incredibly useful stand that allows you to make fine adjustments to the vertical height of the microscope and swivel the scope arm around a 360 degree range.


Specification:
Image sensor: 5MP
Focus range: Manual focus from 10mm to 500mm
Still capture resolution        2560x2048 (5M), 2000x1600, 1600x1280 (2M),1280x1024, 1024x960, 1024x768, 800x600, 640x480, 352x288, 320x240, 160x120
Video capture resolution    2560x2048 (5M), 2000x1600, 1600x1280 (2M), 1280x1024, 1024x960, 1024x768, 800x600, 640x480, 352x288, 320x240, 160x120
Focus Range Manual focus from 10mm to 500mm
Frame Rate Max 30f/s under 600 Lus Brightness
Magnification Ratio 20x to 200x
Video format             AVI
Photo format            JPEG or BMP
Light source              8  LED (adjustable by control wheel)
PC interface               USB2.0
Power source           5V DC from USB port
Operation system    Windows2000/XP/Vista/Win7/ Mac
OSD language           English, German, Spanish, Korean, French, Russian
Bundle software       MicroCapture with measurement & calibration function
Diamension               110mm (L) x 33mm (R)
