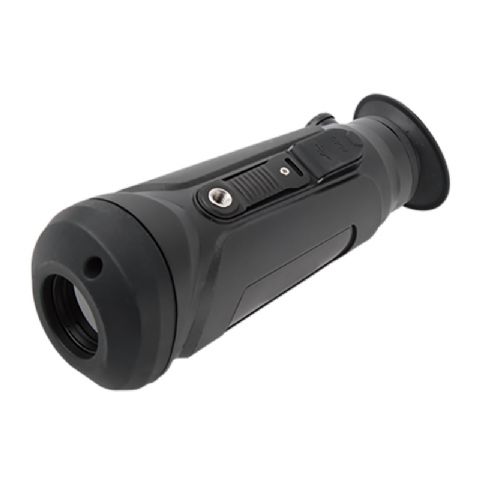

Uncooled FPA Bolometer Thermal Imaging Telescope
Part No:
-
THIM-60240-19 19mm
-
THIM-60240-25 25mm
-
THIM-60240-35 35mm
Features:
-
Small Size
-
One-hand operation, easy carrying
-
Watch the live video, record video and taking picture with your cell phone through WiFi connection
-
-
384 × 288 uncooled FPA detector
-
Spectral range: 8-14µm
-
Detection range: >1 km
-
Real time of 50HZ
-
1.0 meter drop resistance
-
Colour LCD display of 640 x 480
-
Interface: Analogue video and WiFi
Specification
|
Item
|
S240
|
|
Detector
|
Detector type
|
Uncooled FPA bolometer
|
|
Array size
|
384×288
|
|
|
FOV
|
21.7°x16.4°
|
|
Focal length
|
19mm/25mm/35mm
|
|
NETD
|
80mk@30℃
|
|
Frame rate
|
50HZ
|
|
Focus
|
Fixed
|
|
Electronic zoom
|
2X，3X，4X
|
|
Spectral range
|
8-14μm
|
|
Transmission
|
WIFI image transmission, cellphone APP real-time live view, recording, capture and playback.
|
|
Cursor
|
Yes
|
|
Laser point
|
Yes
|
|
Display
|
Display
|
Color LCD 640*480
|
|
Polarity
|
Black/White/Red-hot
|
|
Visibility adjustment
|
Adjust by rotary knob
|
|
Power
|
Battery type
|
Li-ion, rechargeable
|
|
Battery working time
|
5h
|
|
Charger
|
Support USB, power bank
|
|
External power
|
DC5V/2A（Micro USB）
|
|
Environment
|
Working temp
|
-20℃- +50℃
|
|
Storage temp
|
-40℃- +60℃
|
|
Protection Level
|
IP66
|
|
Anti-dropping
|
1 M
|
|
Physical characteristics
|
Weight
|
<0.5Kg
|
|
Dimension
|
<190*70*70mm
|
|
Interface
|
Power port
|
Yes
|
|
Video output
|
PAL
|
|
USB
|
External charge
|
|
Detection distance
|
Human
|
550
|
|
Vehicle
|
750
|
|
Recognition distance
|
Human
|
270
|
|
Vehicle
|
380
|
Technical specifications are for reference only.
