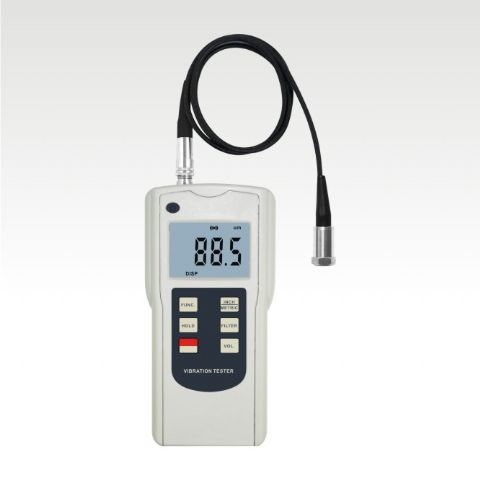

Displacement Velocity Acceleration Vibration Meter Tester
Specifications
* Transducer: Piezoelectric accelerometer
* Accuracy: ±5%+2 digits
* Measurement Range: Displacement: 0.001-4.000 mm equivalent peak-peak / 0.04-160.0 mil
Velocity : 0.1-400.0 mm/s true RMS / 0.004-16.00 inch/s
Acceleration: 0.1-400.0 m/s² equivalent peak / 0.3-1312 ft/s² / 0.0-40g
* Frequency Range: Displacement : 10Hz. ~ 1kHz.
Velocity :10Hz. ~1kHz.
Acceleration: 10Hz. ~ 10kHz.
* Operating Conditions: Temperature : 0-50 ℃, Humidity : below 95% RH
* Analogue Output: AC output 0~2.0V peak full scale (load resistance: above 10k)
* Power Supply: 4x1.5vAAA (UM-4) Battery（Battery not included in the package）
* Size: 140x70x30mm
* Weight: 130g (Not including Batteries)
* Standard Accessories: Main Unit, Magnetic suction seat, Probe (cone) / Probe (spherical) Portable box ,Brochures, Piezoelectric sensor, Carrying Case, Operation Manual
* Optional Accessories: Headset, USB data output, Bluetooth data output
Transducer
|
Piezoelectric accelerometer
|
Accuracy
|
±5%+2 digits
|
| Measurement Range |
Displacement : 0.001-4.000 mm equivalent peak-peak / 0.04-160.0 mil
|
Velocity : 0.1-400.0 mm/s true RMS / 0.004-16.00 inch/s
|
| Acceleration : 0.1-400.0 m/s² equivalent peak / 0.3-1312 ft/s² / 0.0-40g |
Frequency Range
|
Displacement : 10Hz. ~ 1kHz.
|
Velocity :10Hz. ~1kHz.
|
|
Acceleration: 10Hz. ~ 10kHz.
|
| Operating Conditions |
Temperature : 0-50 ℃
|
Humidity : below 95% RH
|
Analogue Output
|
AC output 0~2.0V peak full scale (load resistance: above 10k)
|
Power Supply
|
4x1.5vAAA (UM-4) Battery
|
Size
|
140x70x30mm
|
Weight
|
130g (Not including Batteries) |
Features:
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.
* Individual high quality accelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* AC output socket for headphones and recording.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB data output with connection PC.
* Provide Bluetooth data outputchoice.
