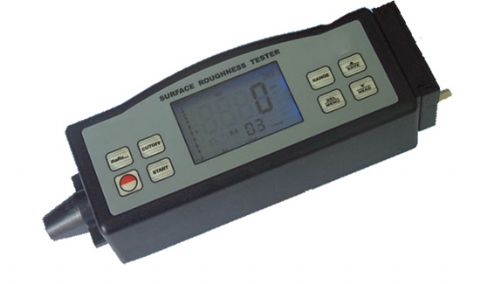

Portable Surface Roughness Tester (Ra, Rz, Rq, Rt)

Product Name: Portable Surface Roughness Tester (Ra, Rz, Rq, Rt)

Product Numbers: ROTE-1002

Product Specifications: Ra, Rz, Rq, Rt

Product Unit: Probe Angle: 90°

Product Remark: Surface Roughness Tester manufacturer

Product Class:Measuring and Testing Instruments > NDT Instruments > Portable Roughness Testers

Product Details

【DateTime:2010-12-26 Browse:】【Font: Big Mid Small】【Print】【Close】

Portable Surface Roughness Tester (Ra, Rz, Rq, Rt)

FEATURES

Compatible with four standards of site to measure surface roughness of various machinery-processed parts, The surface roughness tester calculate corresponding and clearly display all measurement parameters. When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measuring results on LCD. surface roughness tester manufacturer

* Multiple parameter measurement: Ra, Rz, Rq, Rt

* Highly sophisticated inductance sensor

* Four wave filtering methods : RC, PC-RC, GAUSS and D-P

* Built-in lithium ion rechargeable battery and control circuit with high capacity

* Small in size, light in weight and easy to use

* Can communicate with PC computer for statistics, printing and analyzing by the optional cable and the software for RS232C interface.

* Manual or automatic shut down. The tester can be switched off by pressing the Power key at any time. On the other hand, the tester will power itself off about 5 minutes after the last key operation.

* The tester can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.

*Metric /Imperial Conversion

2．Portable Surface Roughness Tester Specification

Display: 4 digits, 10 mm LCD, with blue backlight

Parameters: Ra, Rz, Rq, Rt

Measuring Range

Ra, Rq: 0.005-16.00um/0.020-629.9uinch

Rz,Rt: 0.020-160.0um/0.780-6299uinch

Accuracy: ≤±10%

Fluctuation of display value: Not more than 6%

Sensor :

Test Principle: Inductance type

Radius of Probe Pin: 5um

Material of Probe Pin: Diamond

Dynamo-measurement of Probe: 4mN(0.4gf)

Probe Angle: 90°

Vertical Radius of Guiding Head: 48mm

Maximum driving stroke: 17.5mm/0.7inch

Cutoff length (l): 0.25mm / 0.8mm / 2.5mm optional

Evaluation length: 5l

Driving speed:

sampling length = 0.25mm Vt=0.135mm/s

sampling length = 0.8mm Vt=0.5mm/s

sampling length = 2.5mm Vt=1mm/s

returning Vt=1mm/s

Profile digital filter

Filtered Profile: RC

Filtered Profile: PC-RC

Filtered Profile: Gauss

Non-Filtered Profile: D-P

Resolution : .001μm if reading ＜10μm

0.01μm if 10μm≤reading＜100μm

0.1μm if reading ≥100μm

Evaluation length : 5 cut-off

Power Li-ion battery: rechargeable

Operating conditions: Temp. 0~50℃

Humidity <80%

Size：140x57x48 mm (5.5x2.2x1.9 inch)

Weight: about 420 g
3.Attachment:

--Standard Sensor

--Groove Stylus

--curvature Probe

--Extension Rod

--Mesurement Stand

--Standard Sample Plate
--Cable and Software for RS-232/USB)
--Bluetooth interface
