Coating Thickness Gauge
Zoom Browse

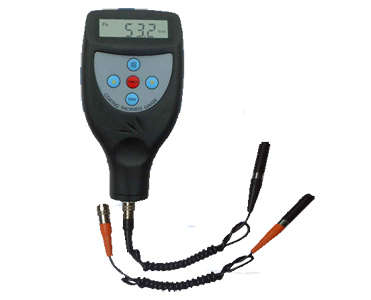

Product Name: Coating Thickness Gauge
Product Numbers: CM-8826
Product Specifications: magnetic induction/eddy current (F/NF)
Product Remark: With separate probe(s)
Product Class:Measuring and Testing Instruments > NDT Instruments > Coating Thickness Gauges
Product Details
【DateTime:2011-02-16 Browse:】【Font: Big Mid Small】【Print】【Close
Coating Thickness Gauge CM-8826 Features:
With separate probe(s)
Operating principle: magnetic induction/eddy current (F/NF)
Measuring range:0-1250um/0-50mil
Resolution; 0.1/1
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AAA(UM-4)battery
Auto power off
Operating conditions:0-+45℃(32℉-104℉),≤90%RH
Dimensions: 126x65x27mm
weight: 81g(not including battery)
Optional accessories: other range 0-200um to 15000um
