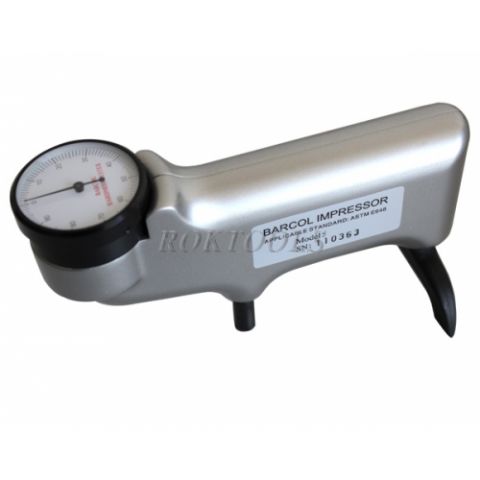

The instruments is widely used to test the hardness of alu, plastic, meet the standard ASTM D2583. It is ideal one for aluminum and aluminum alloy hardness testing,as well as fiberglass reinforced plastic. ROK Barcol hardness tester is featured with easy operation by just single hand and wide measuring range, Even you are non-professional user.
Features:
-Manufactured to Meets ASTM standards E140-97; D2583-75; B648-78; E140-97
-Easy to operation, No experience required.
-Widely used in Aluminum
-for soft metals such as aluminum and its alloys, brass, copper, and some of the harder plastics and glass fibre. Approximate range 25 to 150 Brinell (10 mm ball, 500 kg load).
-Lightweight
Specification:
Test Range: 0-100 HBa
Effective Range:35-90 HBa(equivalent to 25-135 HBW)
Resolution: 0.5 HBa
Indication Error: 42-48 HBa± 2HBa
81-88 HBa± 1HBa
Repeatability Error: 42-48 HBa±2.5 HBa
81-88 HBa± 1.5 HBa
Sample thickness Requirements:>0.8 mm
Weight: 0.5 kg
Package:
Tester *1
Spare Indenter *2
Bacol Test Block 43-48 HBa *1
Bacol Test Black 87-89Hba *1
Calibration wrench *1
Leg *1
Case*1
