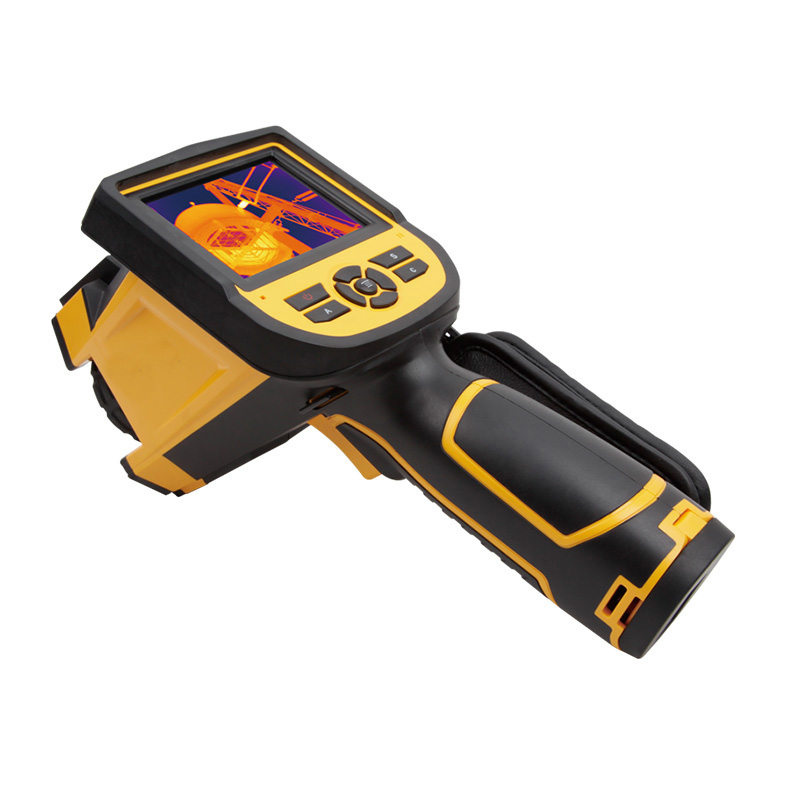

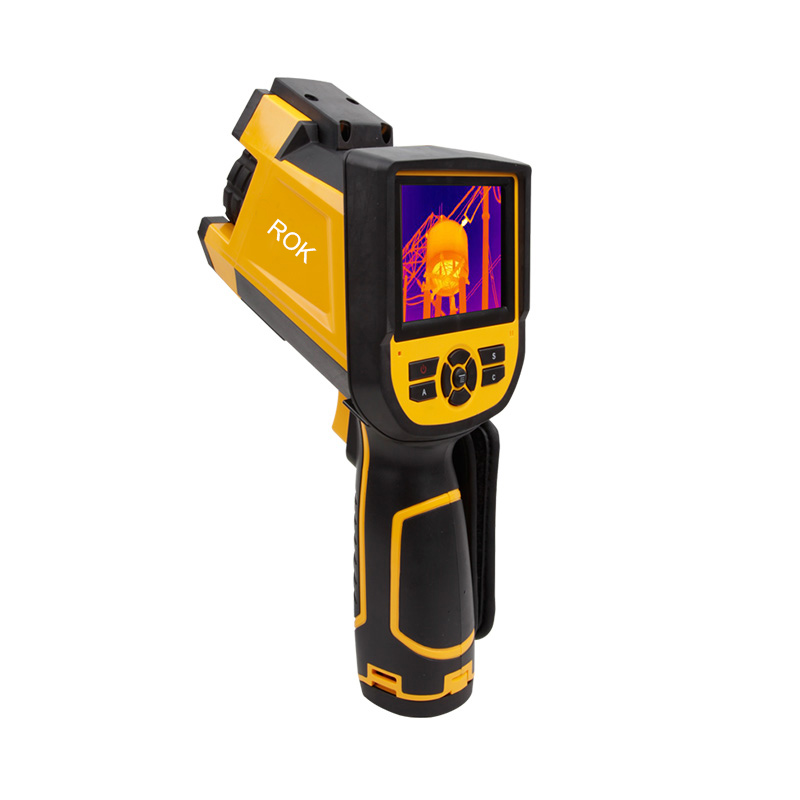

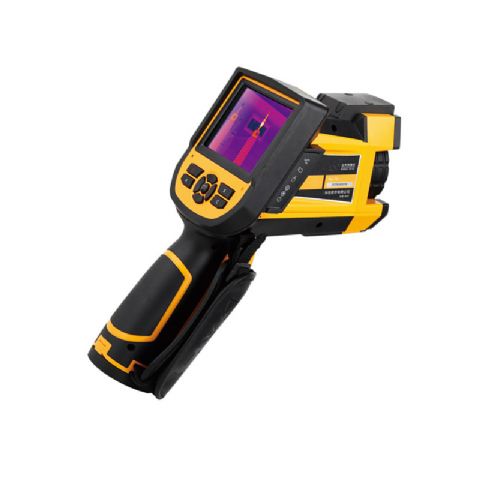

Thermal Camera Infrared Camera IR Camera With Similar Quality To Flir
Features:
-11 user selectable color palettes
-11 user selectable languages
-2X ，4X digital zoom
-5 removable spot measurements
-5 Areas measurements
-2 lines measurements
-Custom shortcuts
-Blue tooth
-Power saving mode
-LCD Brightness adjustment
-Video Output – NTSC or PAL
-Internet settings
-Time and Date settings
-Factory settings restore
-TF card uninstall, formatting
-TF card image storage, video storage
-Text and Audio annotation via image storage
-Consecutive image shot storage
-Alarm image capture
-Alarm video record
-Isotherm measurement function
-Temperature measurement settings
-Built in Emissivity Table list of common materials
-CMOS visible image and storage
-Infrared and visible image fusion
-Merge set
Specification:
|
Item
|
Specification
|
|
Detector
|
Detector type
|
Uncooled FPA
|
|
Resolution
|
384×288
|
|
Image performance
|
FOV/minimum focal distance
|
25°×19°/0.1m
|
|
Spatial resolution
|
1.36mrad
|
|
Thermal sensitivity
|
≤0.04℃@30℃
|
|
Frame rate
|
50/60Hz
|
|
Focus
|
Manually focus
|
|
Spectral range
|
8-14um
|
|
Built-in visual light camera
|
3.2M resolution，CMOS module，built-in 2 LED
|
|
Image display
|
LCD screen
|
3.6”TFT color LCD，640×480 touch screen
|
|
Image display
|
The thermal image and the visual image can be switched quickly, IR fusion, PIP
|
|
Color palette
|
11 color
|
|
Image adjustment
|
Auto/manually adjust contrast, brightness, automatic gain mode
|
|
Measurement
|
Measuring range
|
+30℃- +42℃
|
|
accuracy
|
±0.3℃
|
|
Measurement correction
|
Auto/manual
|
|
Measuring mode
|
UP to 5 movable spots, 5 movable areas(the highest temperature, the lowest temperature capture,average temperature measurement), 2 line profile, Isotherm, Temperature difference, Temperature alarm(voice, color)
|
|
Setup function
|
Date/time, temperature unit ℃/℉/K, language, contrast/brightness,LCD background light, IP address
|
|
Emissivity correction
|
Variable from 0.01 to 1.0
|
|
ambient temperature calibration
|
Auto
|
|
Atmospheric transmittance calibration
|
Automatic correction according to user input object distance, relative humidity, ambient temperature.
|
|
Image storage
|
Storage card
|
8GMicro SD（TF）card，max 32G
|
|
Saving method
|
Manual/auto(set time or temperature triggering) storage, single thermal storage, the storage of thermal and visible light, the fusion storage of the thermal and visible light; thermal video, the record of the thermal and visible light, the fusion of thermal and visible light
|
|
File format-thermal
|
JPEG format , with original thermal measurement date; MPEG4 format, with original thermal measurement date record
|
|
File format-visual
|
JPEG format、MPEG4 format，with fusion
|
|
Voice annotation
|
The 60 seconds voice record, with the image be saved(built-in microphone or bluetooth headset)
|
|
Text annotation
|
Yes
|
|
Laser pointer
|
Laser pointer
|
Class 2，1mW/635nm red
|
|
The power supply system
|
Battery type
|
Li-Ion, rechargeable
|
|
The operating time of battery
|
The 4 continuous operating time
|
|
Rechargeable type
|
Intelligent charger or power adapter 12V (optional) to random charge
|
|
Saving mode
|
Auto sleep, auto shutdown
|
|
Environment
|
Operating temperature
|
0℃-+42℃
|
|
Storage temperature
|
-40℃~+70℃
|
|
Humidity
|
≦95％
|
|
Water Resistance
|
IP54
|
|
Anti-shock
|
25G，IEC68-2-29
|
|
Anti-vibration
|
2G，IEC68-2-6
|
|
Drop
|
2meters
|
|
Physical characteristic
|
weight
|
0.98Kg
|
|
Dimension
|
230mm×105mm×245mm
|
|
Headrail
|
The both sides can be installed
|
|
tripod
|
1/4″-20-UNC
|
|
Interface
|
Power supply interface
|
Yes，DC 12V
|
|
Storage card slot
|
Micro SD（TF）slot
|
|
Network interface
|
Mini-USB，Set the IP address and the real-time original image
|
|
Video output
|
Yes，PAL/NTSC
|
|
Audio/date output
|
Bluetooth (headset/RS232)
|
