Digital Wire/Cable Rope Tension Meters Tension Gauge
           A rugged, lightweight portable field tension meter which measures line tensions - without breaking into the line, very simple and handy to use. Simply hold and “clip” it to the rope to be tested and use the large hand screw to deflect the rope to a fixed angle.designed to swiftly and accurately measure the tension in fixed or stationary ropes or cables i.e. guy wires for masts and towers or other guyed constructions. The products will also be very useful in determining the tension in overhead suspension ropes for railway catenaries. Rope Tension Testing Instrument can be applied to various occasions, such as power industry, telecommunications industry, transportation industry, glass curtain wall decoration, ropeway industry, construction industry, pleasure grounds, tunnel construction, fishing, major research institutions and teaching institutions, testing institutions and other occasions involved with the tension of ropes and steel wire ropes



Specification:

-Power rechargeable battery  charger (charging voltage 100V～240V)

-Transport temperature          -10℃～60℃

- Rope Diameter: ¢6～¢40mm

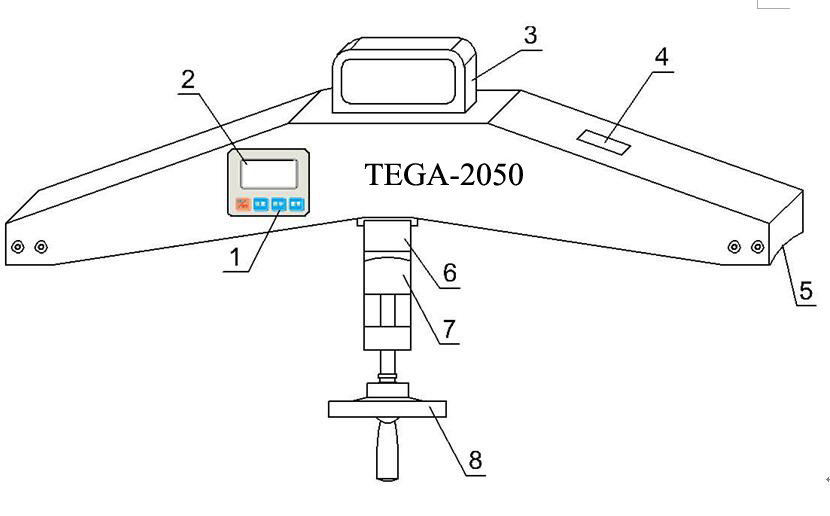

Structure:

1. function keys 2. LCD screen 3. handle 4. Rs232 9-hole socket and power socket 5. support seat  6. positioning block 7. locking block 8. hand wheel
