Compact Force Gauge Push and Pull Gauge
Zoom Browse
Product Name: Compact Force Gauge Push and Pull Gauge
Product Numbers: FOGA-6002
Product Specifications: Test Range: 2-500N
Product Unit: Resolution:0.001N-0.1N
Product Remark: Portable
Product Class:Measuring and Testing Instruments > Force Measuring Instruments > Force Gauge
Product Details
【DateTime:2017-04-11 Browse:】【Font: Big Mid Small】【Print】【Close

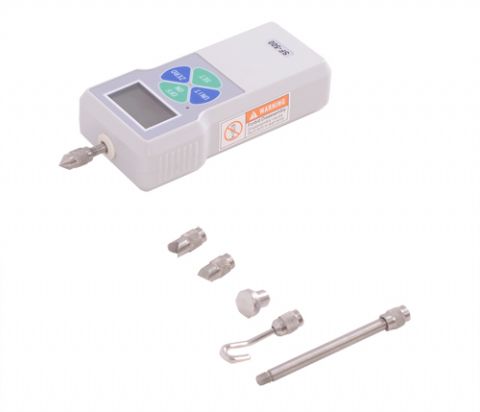

Compact Force Gauge Push and Pull Gauge
Specification:
Range: 2N, 3N, 5N, 10N, 20N, 30N, 50N, 100N, 200N, 300N, 500N.
Resolution: 0.001N-0.1N
Model FOGA-6002 FOGA-6003 FOGA-6005 FOGA-6010 FOGA-6020 FOGA-6030 FOGA-6050 FOGA-6100 FOGA-6200 FOGA-6300 FOGA-6500
The max
load value
2N 3N 5N 10N 20N 30N 50N 100N 200N 300N 500N
0.2kg 0.3kg 0.5kg 1kg 2kg 3kg 5kg 10kg 20kg 30kg 50kg
0.45Lb 0.65Lb 1.1Lb 2.2Lb 4.5Lb 6.5Lb 11Lb 22Lb 45Lb 65Lb 110Lb
Load Value
Resolution
0.001N 0.01N 0.1N
0.001KG 0.001KG 0.01KG
0.001Lb 0.001Lb 0.01Lb
The sensor sensor inside
Precision ±0.5%
Power 3.7V lithium battery
Charging time 4~6 hours
Continuous
usage time
About 15 hours
Battery life ≥ 300 times
Charger  Input:AC100- 240V  50-60Hz           Output: DC  5V  1000mA
Working temp. 5 ℃ ~35 ℃
Transportation  temperature -10 ℃~60℃
Relative humidity 15%~80%RH
Work environment No focus ,Non-corrosive in surroundings

Manufacturer: ROK Internaitonal Industry Co., Limited
Note: We reserve the right to change products and specifications at any time without prior notice, All Pictures shown are for illustration pupose only, Actual product may wary due to product enhancement.
