| Product Name: Clamp-on Portable Ultrasonic Flow Meter China |
| Product Numbers: ULFL-2002 |
| Product Specifications: Measuring accuracy±1% |
| Product Unit: Repeatability±0.2% |
| Product Remark: Ultrasonic Flow Meter |
| Product Class:Measuring and Testing Instruments > Flow Meters > China Ultrasonic Flowmeters |
|
 Product Details Portable Ultrasonic flow meter with CE Mark
Measuring accuracy±1%
Repeatability±0.2%
Externally bonded installation,simple operation,convenience.
Four lines of characters can display instantaneous flow, curriculum flow and signal states on the same screen.
Internal data recording machine can record time, cumulative flow, signal state and work time.
Standard data interface RS232 used for network detecting or exporting record data
Self-diagnosis,show whether the working state is normal
Internal Ni-MH rechargeable battery can work successively over 10 hours.

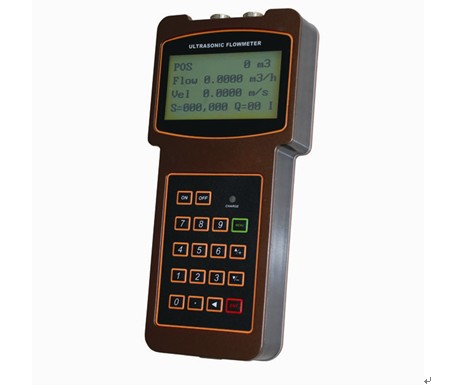

Portable Ultrasonic flow meter
Main Features
|
Features
|
Description
|
|
High Accuracy measuring
|
Accuracy: ±1%, linearity: 0.5%, repeatability: 0.2%
|
|
Non-intrusive measuring
|
Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
|
|
Wide measuring range
|
Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm
|
|
Light weight
|
Size: 200×93×33mm, weight: only 0.4kg
|
|
Large capacity battery
|
Built-in rechargeable Ni-MH battery, provide over 12 hours of continuous operation
|
|
Large LCD display
|
Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc.
|
|
Built-in data logger
|
Built-in 4M data logger
|
General Specification:
|
Items
|
Specification
|
|
Linearity
|
0.5%
|
|
Repeatability
|
0.2%
|
|
Accuracy
|
Better than ±1% for velocity above 0.2m/s
|
|
Response Time
|
0-999 second, user-configurable
|
|
Flow Range
|
±32m/s
|
|
Measuring Pipe Size
|
15mm-6000mm
|
|
Units
|
English (U.S.) or metric
|
|
Totalizer
|
7-digit totalizer for net, positive and negative flow respectively
|
|
Liquid Types
|
Any single uniform liquid which can transmit ultrasonic
|
|
Security
|
Setup values Modification Lockout. Access code needs unlocking
|
|
Display
|
4×16 character
|
|
Communication
Interface
|
RS-232 interface. 75-57600bps, compatible with Fuji ultrasonic flowmeter and other UFM on enquiry.
|
|
Transducers
|
Model M1 for standard, other 4 models for optional
|
|
Transducer Cable
|
Standard 5m x2 or can be extended to 10m x2
|
|
Power Supply
|
3 AAA built-in Ni-MH batteries (for over 12 hours of operation). 100V-240VAC adapter
|
|
Data Logger
|
Built-in data logger can store over 2000 lines of data
|
|
Manual Totalizer
|
7 digit, calibrating by key
|
|
Housing Material
|
Flaming retarding ABS
|
|
Size
|
200×93×33mm
|
|
Handset Weight
|
400g with batteries
|
|
|
|
