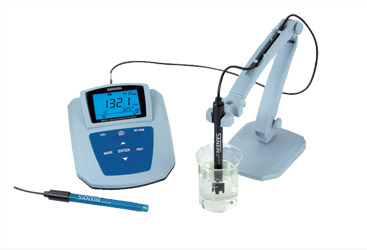

China Bench Lab pH/Conductivity Meter
Zoom Browse
Product Name: China Bench Lab pH/Conductivity Meter
Product Numbers: PHME-521
Product Specifications: (-1.99 ~ 19.99)pH
Product Unit: (0.00~20.00) μS/cm ( 20.0~200.0) μS/cm
Product Remark: Conductivity, TDS, Salinity and Resistivity.
Product Class:Measuring and Testing Instruments > Environmental Test > pH Meters
Product Details
【DateTime:2011-12-21 Browse:】【Font: Big Mid Small】【Print】【Close
China Bench Lab Lab pH/Conductivity Meter Features:
The most widely used pH + Conductivity Double-Parameter measurement meter.
Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc.
There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode.
Automatically recognize pH buffer solution. User can choose anyone from three series of standard buffer solutions: Europe & USA series, NIST series and China series.
Adopt advanced and original conductivity measurement technology, use 1 pc of conductivity electrode (K=1), it can meet measuring accuracy requirement for range within 0.5μS/cm ~ 200mS/cm by using only one-point calibration.
Can switch Conductivity, TDS, Salinity and Resistivity.
Dustproof and waterproof meter meets IP54 standards. All sockets are seal protected by the silica gel caps.
pH
Measuring range
Resolution
Accuracy
Input current
Input impendance
Stability
Temp. compensation range
(-1.99 ~ 19.99)pH
0.1/0.01/0.001 pH
Meter:±0.01pH, connect meter with electrode:±0.01pH
≤1×10-12 A
≥3×1012 Ω
+/-0.01 pH/3h
(0 to 100) ℃(automatic or manual)
mV
Measuring range(mV/ORP/EH)
Resolution
Accuracy
-1999.9mV ~ 0 ~ 1999.9mV
0.1mV
+/-0.03% FS
Conductivity
Measuring range





Resolution
Accuracy
Temp. compensation range
Electrode constant
Reference temperature
Conductivity: (0.00~20.00) μS/cm ( 20.0~200.0) μS/cm
(200~2000)μS/cm  (2.00~20.00) mS/cm
(20.0~200.0)mS/cm
Resistivity: (0 ~ 100)MΩ·cm
TDS:  (0 ~ 100)g/L
Salinity: (0 ~ 100)ppt
0.01/0.1/1μS/cm  0.01/0.1/1 mS/cm
Meter:+/-1.0% FS,connect meter with electrode:±1.5% FS
(0 ~ 50)℃(automatic )
0.1 / 0.5 / 1 / 5 / 10 / 50 / 100  cm-1
25℃, 20℃ and 18℃
Temperature
Measuring range
Resolution
Accuracy
-10℃~ 110℃
0.1℃
5~ 60℃range: 0.4℃  other range: 0.8℃
Other Technical Parameters:
Data storage
Storage content

Power
Communication connector
Size and weight
Quality and safety certification
300 groups
Measuring value series number, measuring value, temperature, ATC or MTC state, measuring date and time
DC9V/300mA
RS232
160 × 190 × 70mm/880g
ISO9001:2008, CE and CMC
Working Condition
Environment temperature
Environmental humidity
IP rating
5 ~ 35 ℃(0.01grade) 15 ~ 30 ℃(0.001grade)≤75%
IP54 Dustproof and waterproof

Standard Kit includes:

1. Model 521 Lab pH/Conductivity meter 1set
2. Model 602 flexible electrode holder 1pc
3. 201T-M plastic pH/ATC three-in-one combination electrode 1pc
4. 2301T-M plastic pH/ATC three-in-one combination electrode 1pc
5. pH standard buffer solution(pH4.00, pH7.00 and pH10.01/50mL) 1btl/each
6. 1413μS/cm conductivity standard solution(50mL) 2btls
7. 9V power adapter(meter use)e 1pc
8. RS-232 communication cable 1pc
9. MP521 communication software disk 1pc
10. Operation manual 1unit
11. Brief operation instruction 1unit
12. Packing List 1pc
