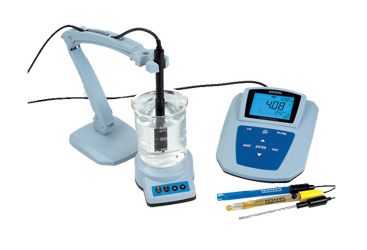

High Accuracy Bench Top Conductivity/Dissolved Oxygen (DO) Meter
Zoom Browse
Product Name: High Accuracy Bench Top Conductivity/Dissolved Oxygen (DO) Meter
Product Numbers: PHME-526
Product Specifications: (0 ~ 40.00)mg/L(ppm) (0 ~ 200.0)%
Product Unit: automatic temperature compensation
Product Remark: conductivity, TDS, salinity and resistivity
Product Class:Measuring and Testing Instruments > Environmental Test > Dissolved Oxygen Meter
Product Details
【DateTime:2013-12-20 Browse:】【Font: Big Mid Small】【Print】【Close
High Accuracy Bench Top Conductivity/Dissolved Oxygen (DO) Meter

Descriptions:
1. Automatically recognize 8 kinds of conductivity standard solution. User can choose anyone from two series of solutions: Europe & USA series and China series.
2. Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc.
3. Adopt advanced and original conductivity measurement technology, use 1 pc of conductivity electrode (K=1), it can meet measuring accuracy requirement for range within 0.5μS/cm ~ 200mS/cm by using only one-point calibration.
4. There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode.
5. Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale.
6. Equips new type of DO electrode which has function of automatic temperature compensation and automatic salinity compensation as well as automatic air pressure compensation inside meter to make DO measuring mode has temperature, air pressure and salinity automatic compensation, easy to use, accurate to measure.
7. Polarogram type DO electrode has special electrode calibration cap. Only needs 3 to 5 minutes for electrode polarization. Electrode adopts combination diaphragm cap which very convenient to use. Each DO electrode equips with three spare diaphragms caps.
8. Meter has the only product serial number.
9. Dustproof and waterproof meter meets IP54 standards. All sockets are seal protected by the silica gel caps.
10. Conductivity measurement mode has the function of non-linear temperature compensation for high purity water.
Specifications:
Conductivity
Measuring range





Resolution
Accuracy
Temp. compensation range
Electrode constant
Reference temperature
Conductivity:(0.00~20.00)μS/cm (20.0~200.0)μS/cm
(200~2000)μS/cm  (2.00~20.00)mS/cm
(20.0~200.0)mS/cm (200~2000)mS/cm(K=10)
Resistivity:(0 ~ 100)MΩ·cm
TDS: (0 ~ 100)g/L
Salinity:(0 ~ 100)ppt
0.01/0.1/1μS/cm  0.01/0.1/1 mS/cm
Meter:+/-0.5% FS,connect meter with electrode:+/-0.80% FS
(0 ~ 50)℃(automatic )
0.1 / 0.5 / 1 / 5 / 10 / 50 / 100  cm-1
25℃,20℃ and 18℃
Dissolved Oxygen
Measuring range
Resolution
Accuracy
Response time
Residual current
Temp. compensation range
Salinity compensation range
Air pressure compensation
Automatic calibration
Electrode type
(0 ~ 40.00)mg/L(ppm)  (0 ~ 200.0)%
0.1/0.01 mg/L(ppm)  1/0.1 %
Meter:+/-0.10 mg/L,connect meter with electrode:+/-0.40 mg/L
 ≤30 s(25℃, 90% response)
≤0.1 mg/L
(0 ~ 45)℃(automatic)
(0 ~ 45)ppt(automatic)
(80 ~ 105)kPa(automatic)
Air saturated by water; water saturated by air
Polarogram type
Temperature
Measuring range
Resolution
Accuracy
-10℃~ 110℃
0.1℃
5~ 60℃range:+/-0.4℃  other range:+/-0.8℃
Other Technical Parameters:
Data storage
Storage content

Power
Communication connector
Size and weight
Quality and safety certification
300 groups
Measuring value series number, measuring value, temperature, ATC or MTC state, measuring date and time
DC9V/300mA
RS232
160* 190 * 70mm/880g
ISO9001:2008, CE and CMC
Working Condition
Environment temperature
Environmental humidity
IP rating
5 ~ 35 ℃(0.01grade) 15 ~ 30 ℃(0.001grade)
≤75%
IP54 Dustproof and waterproof
Standard Package:
1. Model PHME-526 Conductivity/DO Meter 1set
2. Model 901 Intelligent Stirrer 1set
3. Model 602 Flexible Electrode Holder 1pc
4. DO500 DO Electrode 1pc
5. 2401-M Conductivity Electrode 1pc
6. DO503 Membrane Cap (Be used for DO electrode) 3pc
7. 1413μS/cm Conductivity Standard Solution (50mL) 2btls
8. 9V Power Adapter (Meter Use) 1pc
9. 6V Power Adapter (Stirrer Use) 1pc
10. DO502 DO Electrode Inner Solution (30mL) 1btl
11. B628 Stirring Bead 3pcs
12. AA Battery 4pcs
13. RS232 Communication Cable 1pc
14. MP526 Communication Software CD 1pc
15. Packing List 1unit
16. Cathode Polish Paper 20pc
17. Operation Manual 1unit
18. Brief Operation Instruction 1unit
