1.AUTO RAMP function to test trip time and trip current;

2.3 LED lamp for connectivity check;

3.Auto Data Hold function to display trip time for several seconds after each test;

4.Phase Switch Selection (0°and 180°) to test shortest triggering time;

5.Overload indication – “OL”;

6.Environmental: no battery is required. Powered directly from testing subject (A/C 220V/50Hz);

7.Fused protection and double insulation structure for extra safety

8.Intelligent micro-processing controller to provide high-accuracy and reliability;

9.Ergonomic design;

10.Comply with IEC 61010-1 CAT III 300V; IEC 61557-1,5; IEC 61010-2-31.



Specification	Range			Best Accuracy

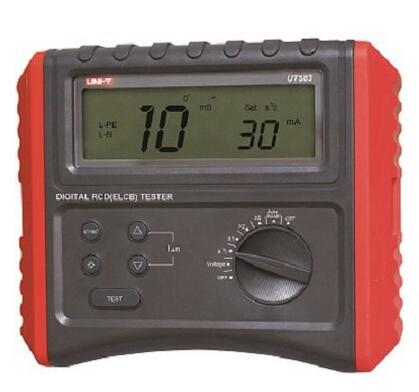

Model				UT585
RCD Measurement	Range Select	Rated Operating Current	Trip Time	√
	X 1/2	10mA/20mA/30mA/100mA/300mA/500mA	1000mS	√
	X 1	10mA/20mA/30mA/100mA/300mA/500mA	1000mS	√
	X 2	10mA/20mA/30mA/100mA/300mA	1000mS	√
	X 5	10mA/20mA/30mA/100mA	200mS	√
	AUTO RAMP	10mA/20mA/30mA/100mA/300mA/500mA	300mS	√
	Trip Current Accuracy			±10%
	Trip Time Accuracy			±(1%+3)
	Trip Time Resolution			1mS
	Operational Voltage(Freq.)	230V（50Hz)		±10%
AC Voltage (V) (Freq.)	60V～400V（50～60Hz）			±(3%+5)
Features
Auto Power Off				√
Low Battery Indication				√
Data Hold				√
LCD Backlight				√
Contact Voltage Automatic  Detection				√
Over-Temperature Detection  Instrumentation Devices				√
Lock Test Function				√
Connections Check Function	Lamps Indication			√
Fuse Security				√
General Characteristic
Power	1.5V Alkaline Batteries (LR6) X 8
LCD Size	125mm X 37mm
Product Color	Red and Grey
Product Net Weight	1000g
Product Size	210mm X 175mm X 90mm
Standard Accessories	Batteries, Test Lead
Standard Individual Packing	Gift Box, Tool Box, English Manual
Standard Quantity Per Carton	4 PCs
Standard Carton Measurement	510mm X 330mm X 330mm (0.056CBM Per Standard Carton)
Standard Carton Cross Weight	15Kg
