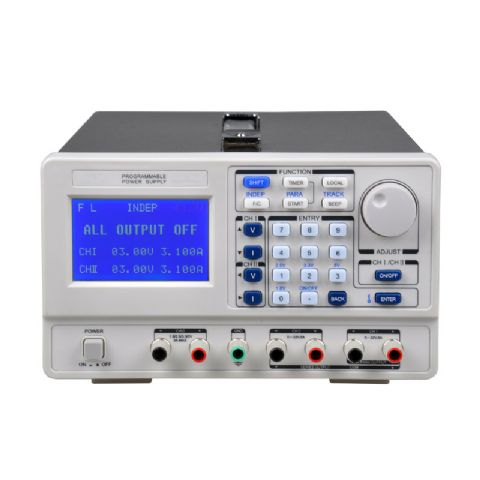

Programmable DC Power Supply

Product Name: Programmable DC Power Supply

Product Numbers: POSU-SK3323-3325

Product Specifications: independent, series and parallel

Product Unit: Smart controlled fan

Product Class:Measuring and Testing Instruments > Electronic test Instruments > Power Supply

Product Details

【DateTime:2018-06-19 Browse:】【Font: Big Mid Small】【Print】【Close】

Programmable DC Power Supply Independent, Series and Parallel

Three output modes: independent, series and parallel

Timer function to output as preset time

Smart controlled fan, effectively reduce the noise

Keypad locked function to avoid misoperation

Standard RS-232 interface, optional interface USB

SPECIFICATIONS

Model	SK3323		SK3325
Channel	CH1, CH2	CH3	CH1, CH2	CH3
Independent	0 ~ 32V/0 ~ 3A×2	1.8 ~ 5V/3A×1	0 ~ 32V/0 ~ 5A×2	1.8 ~ 5V/3A×1
Series	64V/3A		64V/5A
Parallel	32V/6A		32V/10A
Voltage/Current
Voltage Output	0 ~ 32V	1.8V/2.5V/3.3V/5V	0 ~ 32V	1.8V/2.5V/3.3V/5V
Current Output	0 ~ 3A	Max. 3A	0 ~ 5A	Max. 3A
Voltage Step	10mV		10mV
Current Step	1mA		2mA
Source Effect
CV	≤1×10^-4+5mV	≤5mV	≤1×10^-4+5mV	≤5mV
CC	≤1×10^-2+3mA		≤1×10^-2+3mA
Load Effect
CV	≤1×10^-4+5mV	≤5mV	≤1×10^-4+5mV	≤5mV
CC	≤1×10^-2+5mA		≤1×10^-2+5mA
Period and Random Deviation (PARD)
CV	≤1mV	≤2mV	≤1mV	≤2mV
CC	≤3mA		≤3mA
Display Resolution
Voltage	10mV		10mV
Current	1mA		2mA
Accuracy
Voltage	≤ ± (0.2% + 30mV)	≤ ± (2% + 50mV)	≤ ± (0.2% + 30mV)	≤ ± (2% + 50mV)
Current	≤ ± (0.5%+5mA)	≤ ± (5% + 50mA)	≤ ± (0.5%+10mA)	≤ ± (5% + 50mA)
Double Group Synchronism Deviation
CV	± (0.4%+60mV)		± (0.4%+60mV)
CC	± (1%+10mA)		± (1%+20mA)
General Characteristics
Power	AC110V/220V(1±10%), 50Hz(1±5%)
Interface	RS-232, USB (optional)
Dimension & Weight	227×140×330mm, Approx. 8.5kg		227×140×380mm, Approx. 10.5kg
